Creating a Data Load Wizard for Your Application with Oracle Application Express 5.1



Before You Begin

Purpose

This tutorial shows you how to create a Data Loading Wizard for your application so that end users can add data into a table.

Time to Complete

Approximately 15 minutes

Background

Applications with data loading capability allow end users to dynamically import data into a table within any schema to which the user has access. To do this, end users run a Data Load Wizard that uploads data from a file or copies and pastes data entered by the end user directly into the wizard.

With Oracle Application Express 5.1, you can create a series of data load wizard pages in your application using the new Data Loading page wizard. The wizard allows you to add table lookups and transformation rules that are executed when the Data Load Wizard runs.

Context

In this tutorial, you create a DEPENDENTS table and EMP table, create an application with a report, use the Data Loading page wizard to create the Data Load wizard pages in your application that the end user uses to load the data. The Data Loading definition contains a table lookup for the relative name and a data transformation rule to make sure that Gender is stored in uppercase.

What Do You Need?

Before starting this tutorial, you should:

  • Download and unzip the files.zip file into a working directory to use during this tutorial.



Creating the DEPENDENTS table using a SQL Script

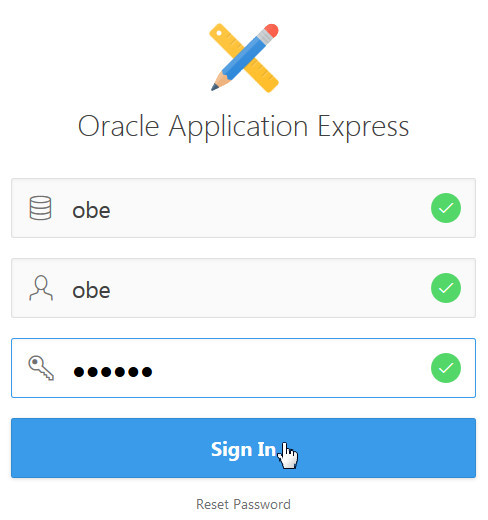

In this section, you upload a SQL Script and run it to create the DEPENDENTS table. To run the script, you should first log into your Oracle Application Express workspace and perform the following steps:

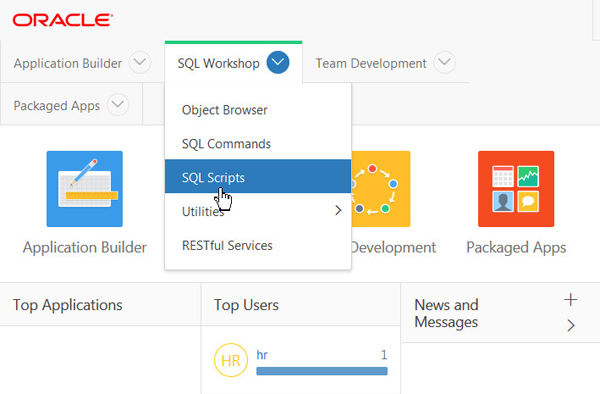

  1. On the Oracle Application Express Home Page, select SQL Scripts from the SQL Workshop  menu.

    Select SQL Scripts.
    Description of this image

  2. Click Upload.

    Click the Upload button.
    Description of this image

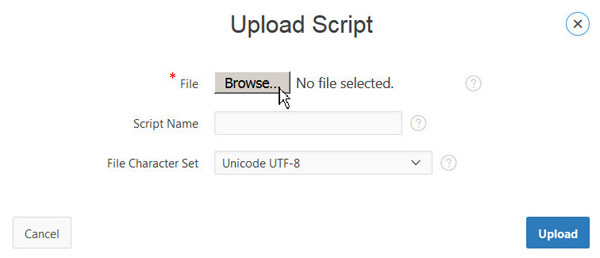

  3. Click Browse.

    Click the Browse button.
    Description of this image

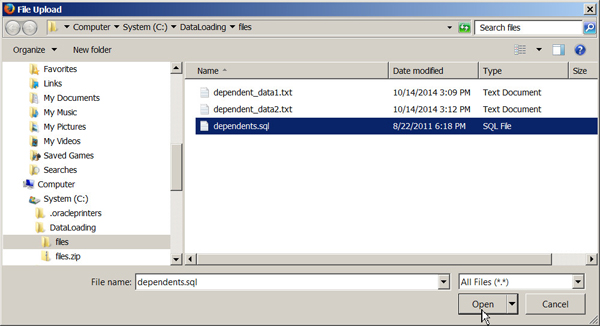

  4. Select dependents.sql from your working directory and click Open.

    Select dependents.sql script.
    Description of this image

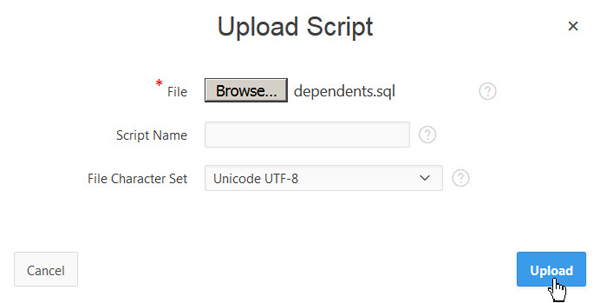

  5. Click Upload.

    Click the Upload button.
    Description of this image

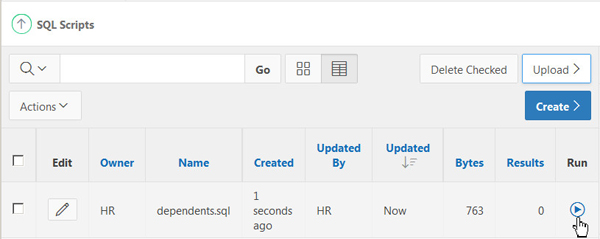

  6. Your script was uploaded successfully. Click the Run icon.

    Click the Run icon.
    Description of this image

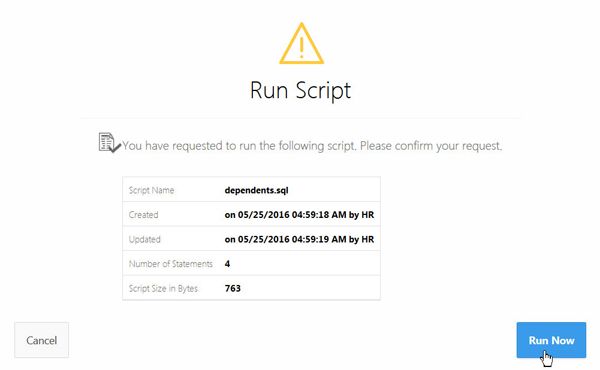

  7. Click Run Now.

    Click the Run Now button.
    Description of this image

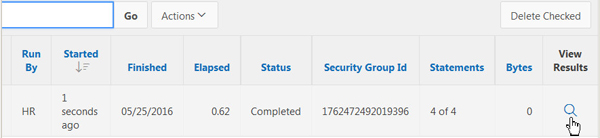

  8. Click the View Results icon.

    Click View Results icon.
    Description of this image

  9. The script ran successfully. In the next section, you create the EMP table using a SQL script.

    Results page
    Description of this image


Creating the EMP table using a SQL Script

In this section, you upload a SQL Script and run it to create the EMP table. Perform the following steps:


  1. From the SQL Workshop  menu, select SQL Scripts.

    Click SQL Scripts.
    Description of this image

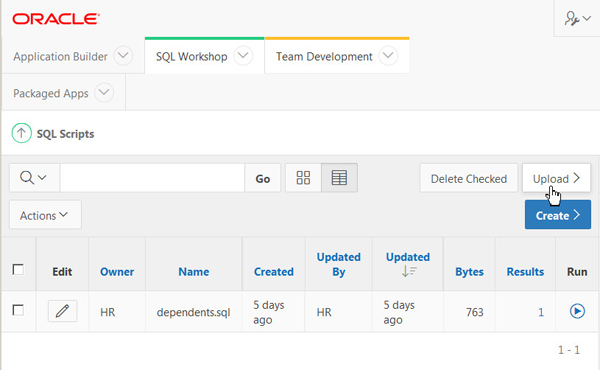

  2. Click Upload.

    Click Upload.
    Description of this image

  3. Click Browse.

    Click Browse.
    Description of this image

  4. Select employees.sql from your working directory and click Open.

    Select employees.sql.
    Description of this image

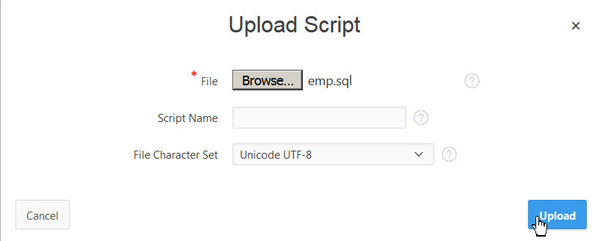

  5. Click Upload.

    Click Upload.
    Description of this image

  6. Your script was uploaded successfully. Click the Run icon.

    Click the Run icon.
    Description of this image

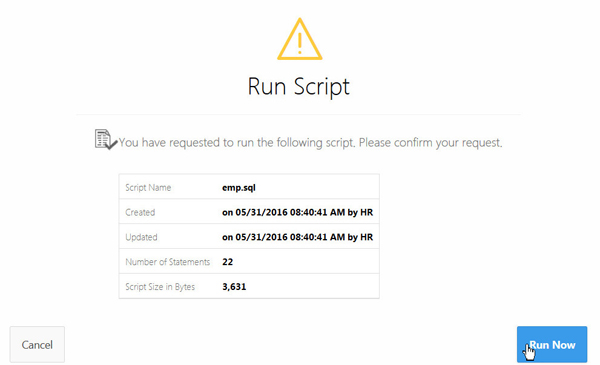

  7. Click Run Now.

    Click Run Now.
    Description of this image

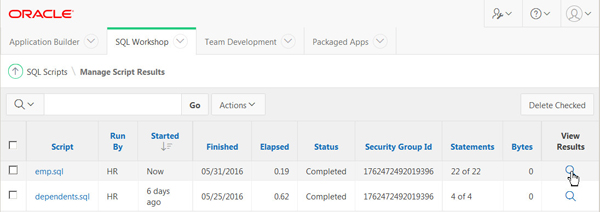

  8. Click the View Results icon.

    Click the View Results icon.
    Description of this image

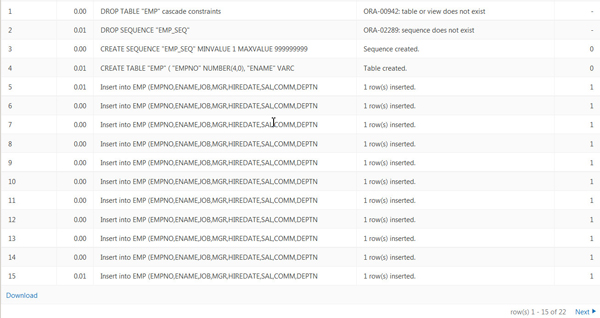

  9. The script ran successfully. The result shows two errors because the EMP table and EMP_SEQ sequence did not exist when the DROP statements were executed. In the next section, you create an instant application and a report region on the Home page.

    Results page
    Description of this image


Creating an Application with a Report

In this section, you create an instant database application and create an interactive report that shows all the data in the DEPENDENTS table. Perform the following steps:

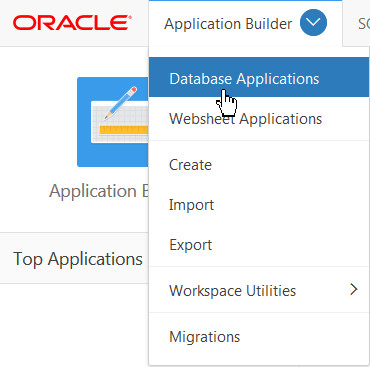

  1. From the  Application Builder menu, select Database Applications.

    Click Database Applications.
    Description of this image

  2. Click Create.

    Click Create.
    Description of this image

  3. Change the Name field to Data Loading and click Create Application.

    Click Create Application.
    Description of this image

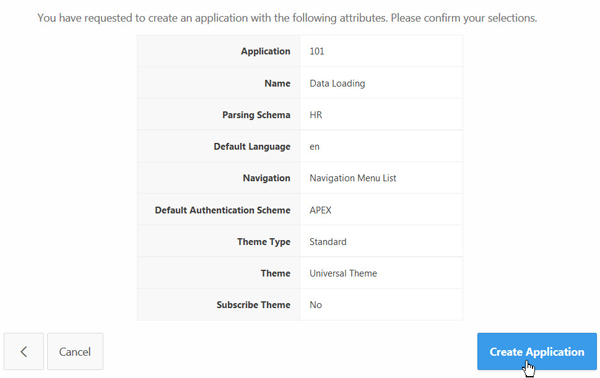

  4. Click Create Application.

    Click Create Application.
    Description of this image

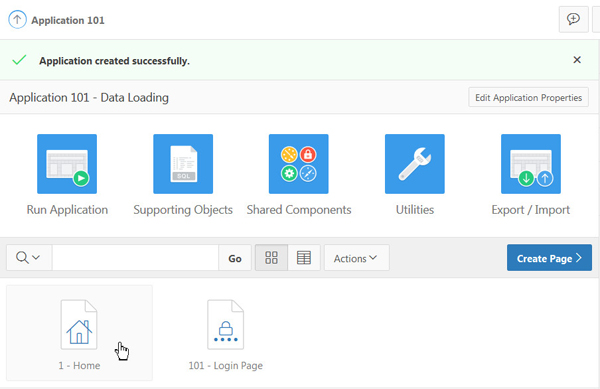

  5. Your application was created successfully. You want to create a report region on the Home page. Click the Home icon.

    Click the Home icon.
    Description of this image

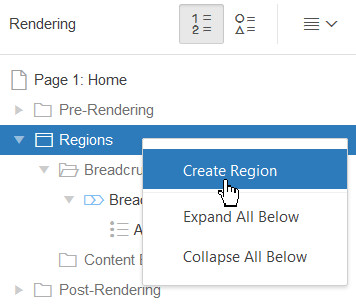

  6. Right-click Regions and select Create Region.

    Click Create Region.
    Description of this image

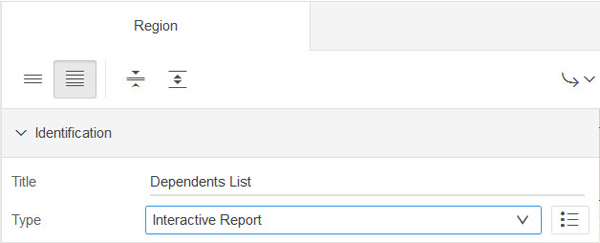

  7. Type Dependents List for Title and select Interactive Report for Type.

    Enter name and type.
    Description of this image

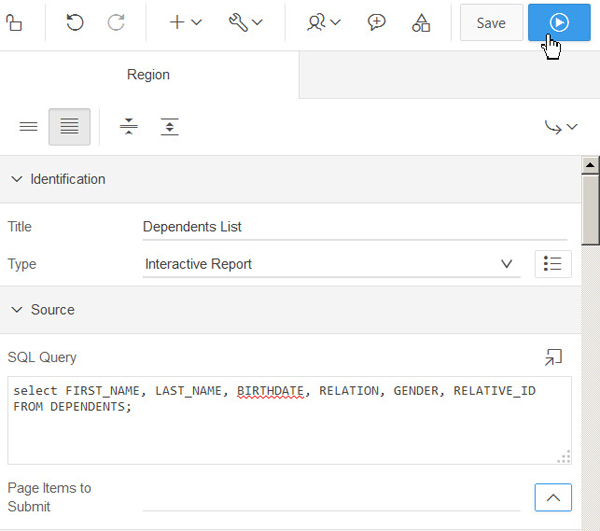

  8. Enter the following SQL SELECT statement and click the Save and Run Page icon.

     select FIRST_NAME,LAST_NAME,BIRTHDATE,RELATION,GENDER,RELATIVE_ID
from DEPENDENTS
    Enter SQL statement.
    Description of this image

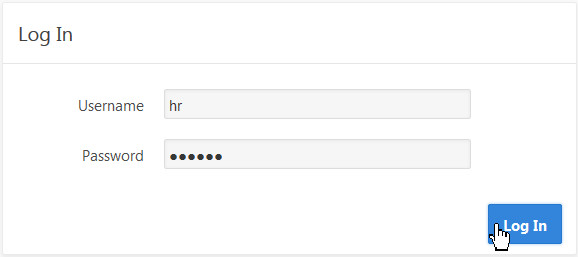

  9. Type a valid user name and password and click Log In.

    Log in.
    Description of this image

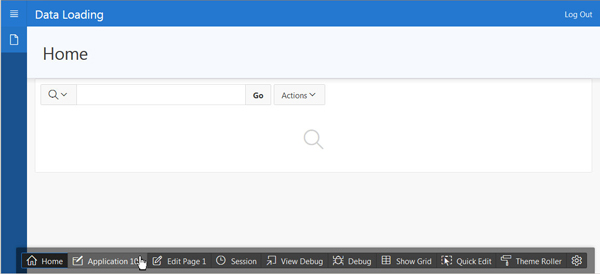

  10. The Home page displays the report. The reason you don't see any data is because the table is currently empty. In the next section, you use the Data Loading Page wizard to create a Data Load wizard. You will then use the Data Load wizard to load data into the DEPENDENTS table. After you load the data into the table, this report will display the loaded data. Click the Application link in the developer toolbar.

    Home page
    Description of this image


Creating a Data Load Wizard Using the Data Loading Page Wizard

In this section, you use the Data Loading page wizard to create four pages in your application that an end user will run to load data into the DEPENDENTS table. Perform the following steps:

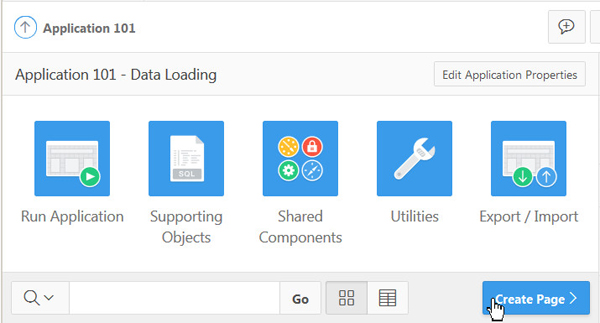

  1. Click Create Page.

    Click Create Page.
    Description of this image

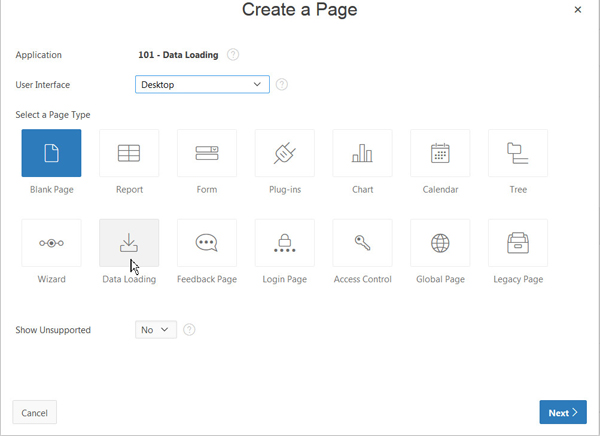

  2. For Page type, click the Data Loading icon.

    Click the Data Loading icon.
    Description of this image

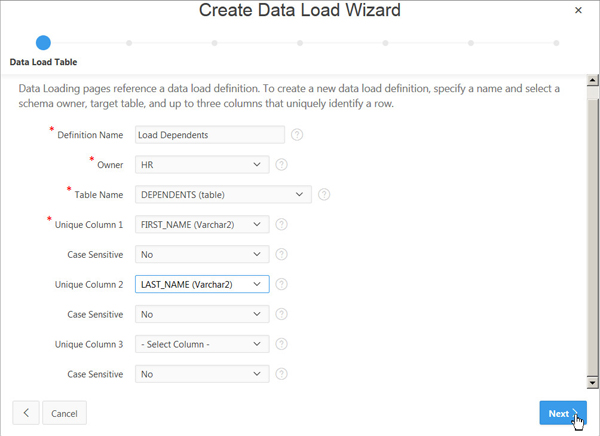

  3. You need to specify the table you want to load data into and what columns uniquely identify the dependent in the table. In this case, the concatenation of FIRST_NAME and LAST_NAME uniquely identify a Dependent in the DEPENDENTS table. Specify and/or select the following and click Next.

    Data Load Definition Name Load Dependents
    Table Name DEPENDENTS
    Unique Column 1 FIRST_NAME (Varchar2)
    Unique Column 2 LAST_NAME (Varchar2)
    Data Load Table
    Description of this image

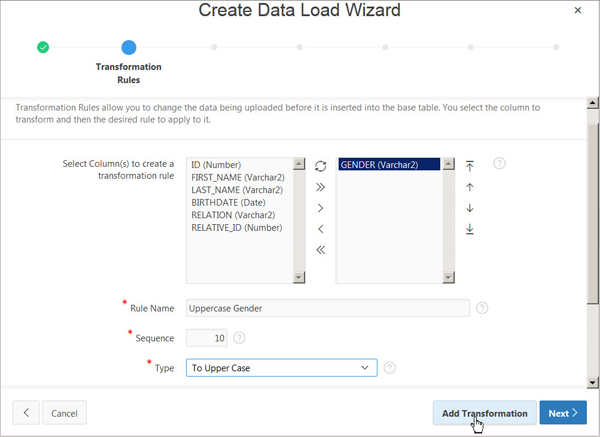

  4. You want to create a transformation rule to make sure that when the data is stored, the data for the GENDER column is stored in Upper Case. Specify and/or select the following and click Add Transformation.

    Column Name Gender
    Rule Name Uppercase Gender
    Type
    		 To Upper Case
    Transformation Rules
    Description of this image

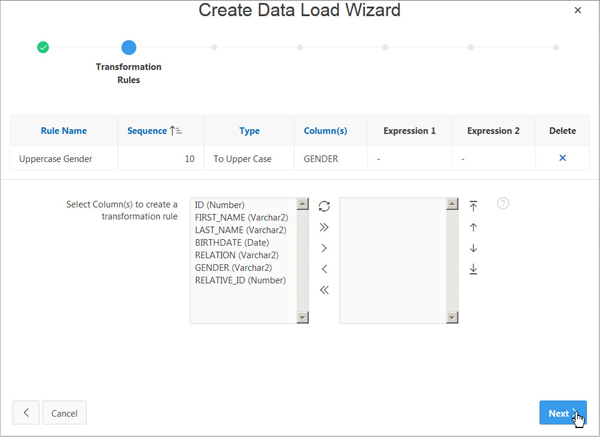

  5. The transformation was created. Click Next.

    Click Next.
    Description of this image

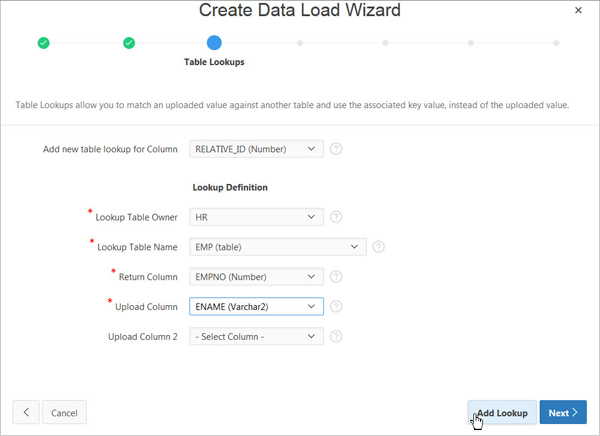

  6. You want to add a lookup for this data load. In this case, the relative_id should correspond to the id of the EMP table so that it is a valid employee of this dependent. Specify and/or select the following and click Add Lookup.

    Column Name RELATIVE_ID
    Table Name EMP
    Column Name(of key value)
    		 EMPNO
    Uploaded Column
    		 ENAME
    Table Lookups
    Description of this image

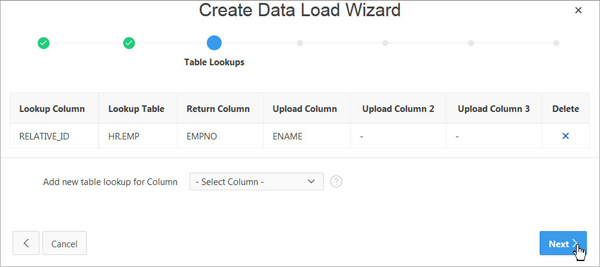

  7. The lookup for RELATIVE_ID was created, click Next.

    Click Next.
    Description of this image

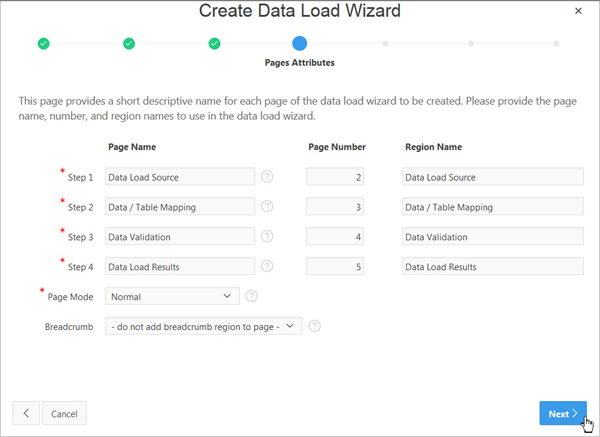

  8. The Data Load Wizard will contain the four pages as described in the Pages Attributes page. Click Next.

    Pages Attributes
    Description of this image

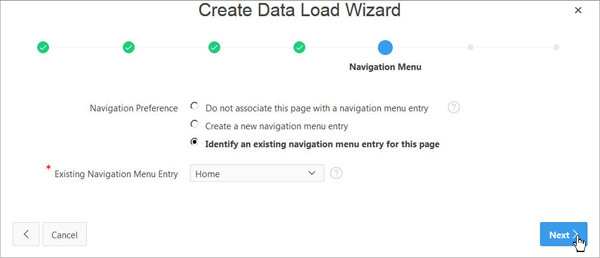

  9. For Navigation Preference, select Identify an existing navigation menu entry for this page option. For Existing Navigation Menu Entry, select Home. Click Next.

    Navigation Menu
    Description of this image

  10. If the user selects the Cancel or Finish buttons, the Home page should be displayed. For this, type 1 in the Cancel Button Branch to Page and Finish Button Branch to Page fields and click Next.

    Buttons and Branching
    Description of this image

  11. Click Create to create the wizard pages for the data load. In the next section, you test the Data Load Wizard pages that were created.

    Click Create.
    Description of this image


Testing Your Data Load Wizard

In this section, you test your data load wizard pages by loading some data. Perform the following steps:

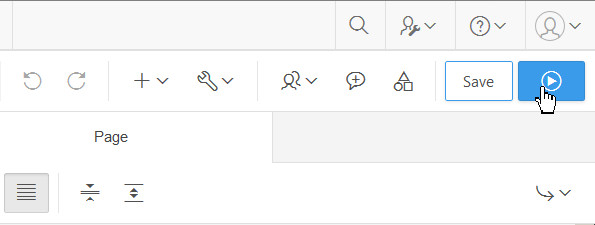

  1. Click Save and Run Page.

    Click the Save and Run Page icon.
    Description of this image

  2. Type your login information and click Login.

    Log in.
    Description of this image

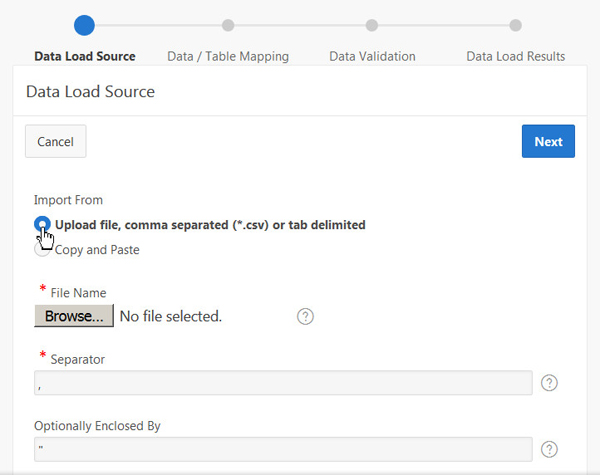

  3. You want to load the data using a tab delimited file. Click the Upload file option for Import From.

    Click Upload file.
    Description of this image

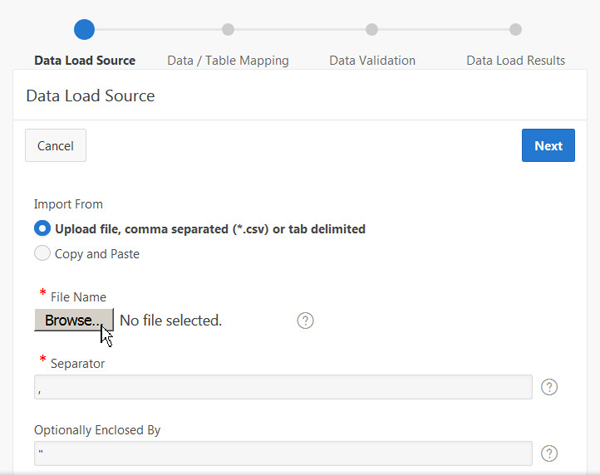

  4. Click Browse.

    Click Browse
    Description of this image

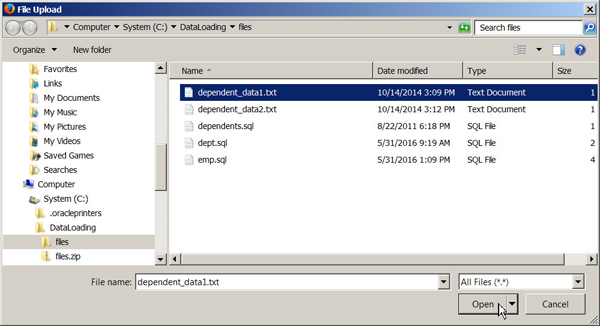

  5. Select the dependent_data1.txt file and click Open.

    File Upload
    Description of this image

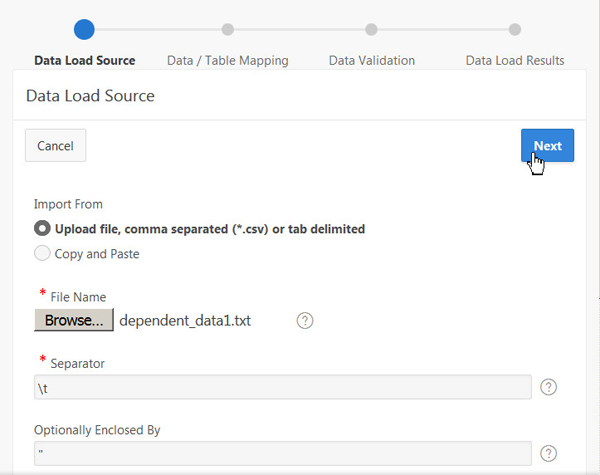

  6. Click Next.

    Click Next.
    Description of this image

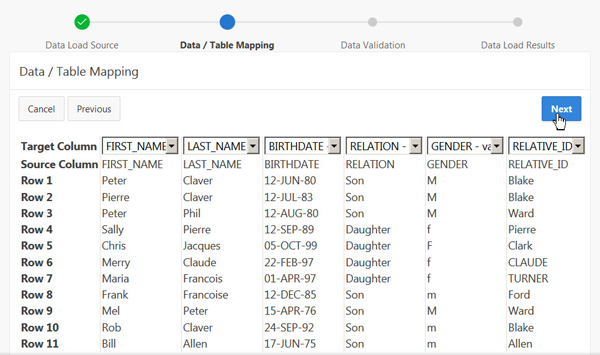

  7. Notice that there are some values for the GENDER column that are lower case and that the values for RELATIVE_ID are the employee names that the dependents are relatives of. When you click Next, the Lookup and Transformation Rules will be applied. Click Next.

    Data Table Mapping
    Description of this image

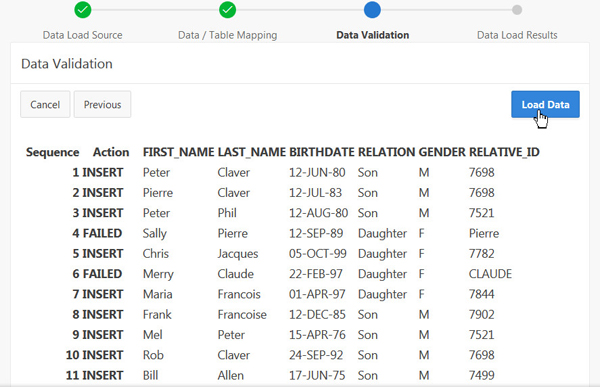

  8. Notice now that all the values for GENDER are uppercase and the EMPNO of the relative is applied for each ENAME that is found in the EMP table. Notice that there are two names it did not find so an error will be generated when the Load takes place. Click Load Data.

    Click Load Data.
    Description of this image

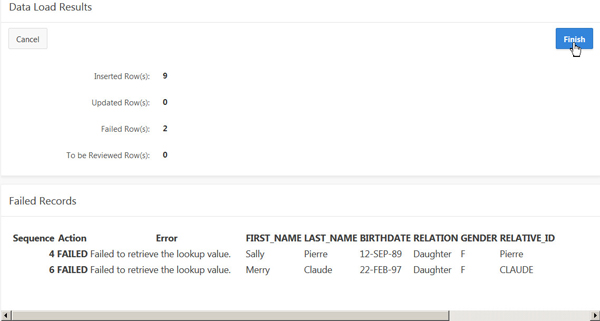

  9. Notice that 9 rows were inserted and the 2 rows for the lookup that were not found failed. Click Finish.

    Click Finish.
    Description of this image

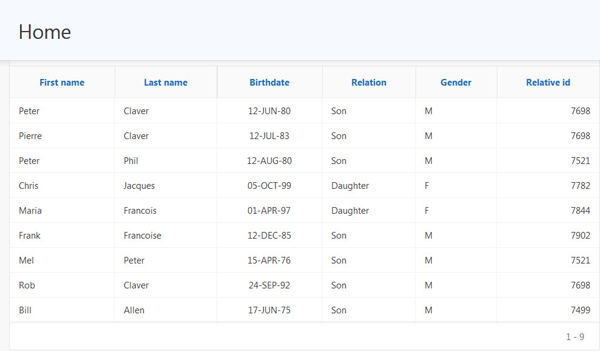

  10. The Home page is now displayed and the report contains the data that you just loaded.

    Home page
    Description of this image

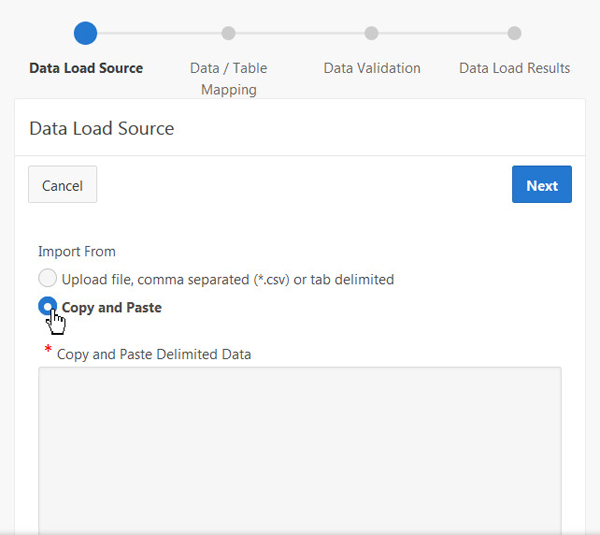

  11. This time you want to use the Copy and Paste option instead of uploading a file. Click Copy and Paste.

    Click Copy and Paste.
    Description of this image

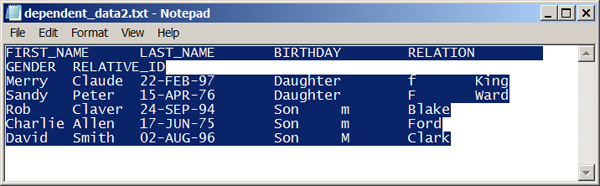

  12. Open the dependent_data2.txt file and copy the entire contents of the file to your clipboard (ctrl+c).

    Dependent_data2.txt file
    Description of this image

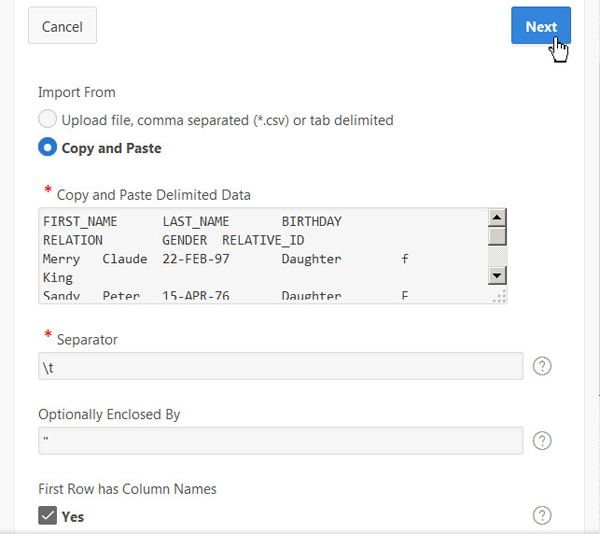

  13. Paste the contents into the Copy and Paste Delimited Data area, make sure the First Row has Column Names is still checked and click Next. Note that the third column name is set to BIRTHDAY instead of the column name in the DEPENDENTS table which is BIRTHDATE.

    Click Next.
    Description of this image

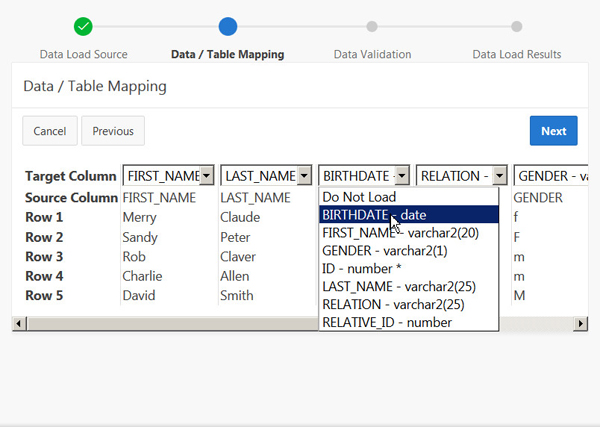

  14. Because the column name did not match, you need to select the column name from the list. Select BIRTHDATE from the list for the third column.

    Data/Table Mapping
    Description of this image

  15. Click Next to apply the lookup and transformation rule.

    Click Next.
    Description of this image

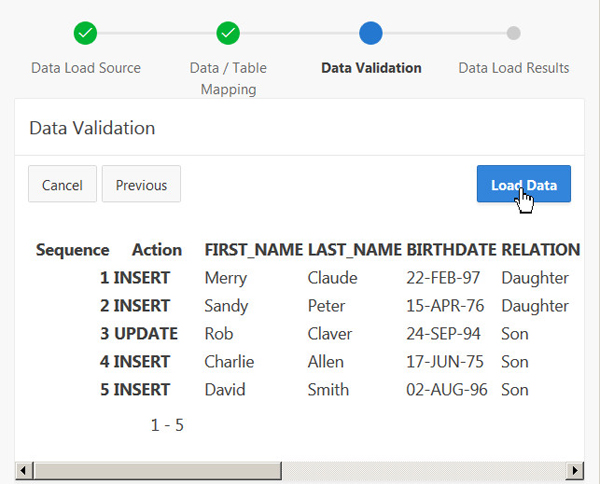

  16. Notice the values for GENDER are in uppercase and all the EMPNO values were found in the EMP table. All the data will be inserted and one row will be updated because it had the same FIRST_NAME and LAST_NAME as the previous load. Click Load Data.

    Data Validation
    Description of this image

  17. The data load results are displayed. Click Finish to return to the Home page.

    Data Load Results
    Description of this image

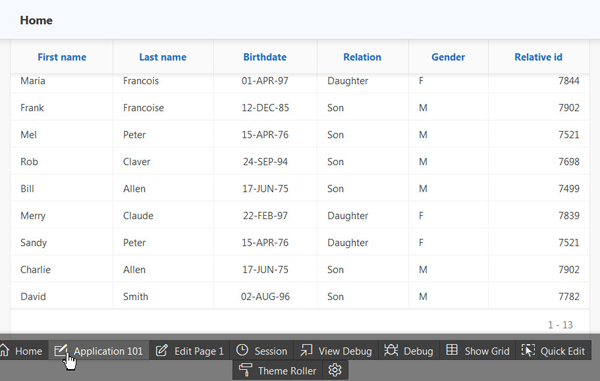

  18. The report is updated with the additional and revised data. In the next section, you review the data load definition. Click the Application link in the developer toolbar.

    Report
    Description of this image


Review the Data Load Definition

In this section, you review the Data Load definition so that if desired, you can make changes. Perform the following steps:

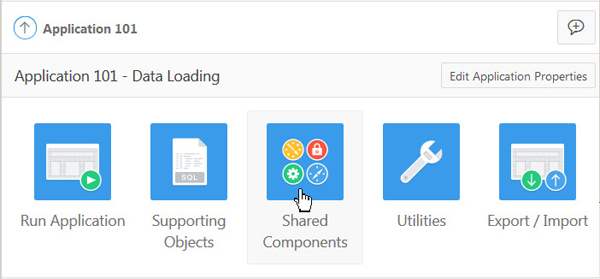

  1. Notice that four Data Load pages were created in your application. To see the Data Load definition for these pages, Click Shared Components.

    Click Shared Components.
    Description of this image

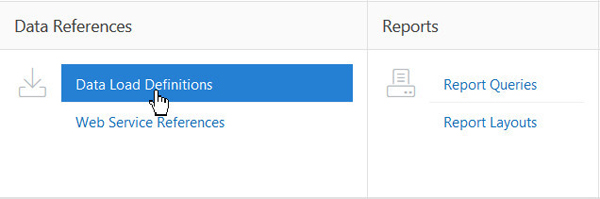

  2. Under Data References, click Data Load Definitions.

    Click Data Load Definitions.
    Description of this image

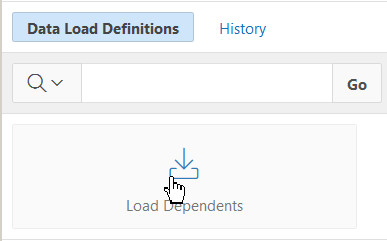

  3. Click the Load Dependents definition.

    Click Load Dependents.
    Description of this image

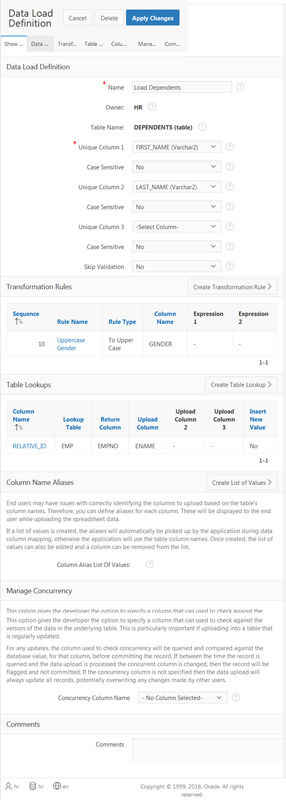

  4. The definition is displayed. Note that you can create or modify any existing Table Lookups or Transformation Rules from this page.

    Data Load Definition
    Description of this image
