Installing and Configuring Oracle® Hyperion Financial Data Quality Management, Fusion Edition 11.1.2.1 for Oracle® Hyperion Financial Management, Fusion Edition

Purpose

This tutorial covers installing and configuring Financial Data Quality Management (FDM) 11.1.2.1 for a Financial Management installation.

Time to Complete

Approximately 1 hour.

Overview

FDM is a packaged solution for finance users that includes a guided Web-based user interface for leveraging standardized financial data management processes, a data preparation server for integrating and validating financial data from any source system, and prepackaged adapters for Financial Management to reduce data integration costs and data-mapping complexities.

In this tutorial, you learn to install and configure FDM, create an FDM application, install and configure the Financial Management adapters, and then link the FDM application to a Financial Management application.

Scenario

As an administrator, you are tasked with installing FDM, creating an FDM application, installing and configuring the Financial Management adapters, and integrating the FDM application with a Financial Management application. You plan on installing FDM on a Windows 2008, 64-bit system. FDM is delivered only with 32-bit assemblies; however, Financial Management and FDM can coexist on Windows 2008 64-bit systems by using Internet Information Services (IIS) 7.

Prerequisites

Before starting this tutorial, you should:

1.

Have installed and configured Foundation Services and Financial Management.

2 .

Know the database creator account and password.

3 .

Have access to or have created a Financial Management application that can link to your FDM application.

4 .

Know the Windows account under which DCOM objects run.

5 .

Know the Windows account under which the .NET processes run.

6 .

Know the user account in your authentication directory that is used to browse the directory and perform authentication.

7 .

Have installed the Oracle database 32-bit client, and then the 64-bit client. You must install the clients in that order.

Preparing for Installation

Financial Management and FDM can coexist on Windows 2008 64-bit systems by using IIS 7; however, you must enable IIS 6 compatibility mode before installing FDM.

In this topic, you enable IIS 6 compatibility mode, and then you download and unzip the FDM installation files.

1.

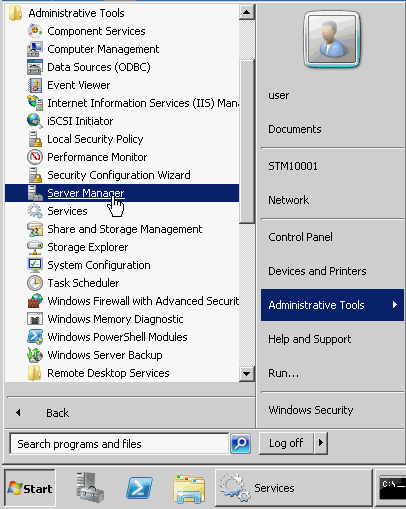

Select Start, then Administrative Tools, and then Server Manager.

Show Screenshot for Step

Server Manager is displayed.



2.

Under your server name, expand Roles.

Show Screenshot for Step


3.

Right-click Web Server (IIS), and select Add Role Services.

Show Screenshot for Step



4.

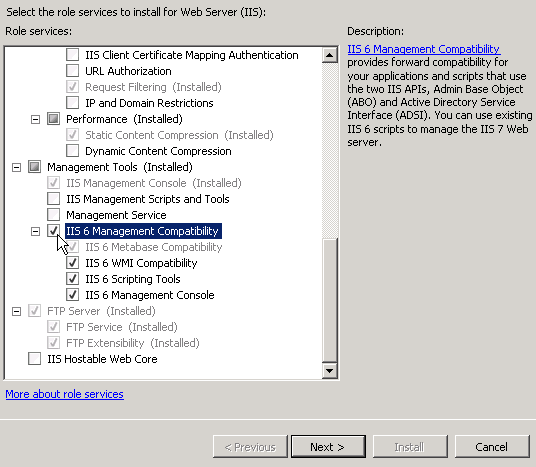

Select IIS 6 Management Compatibility, and click Next.

Show Screenshot for Step

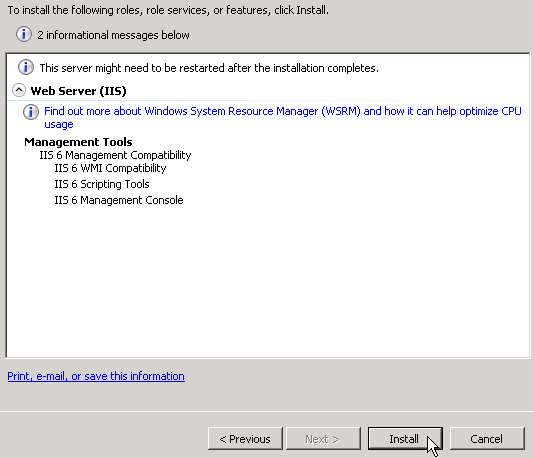

5.

Review the confirmation message, and click Install.

Show Screenshot for Step



6 .

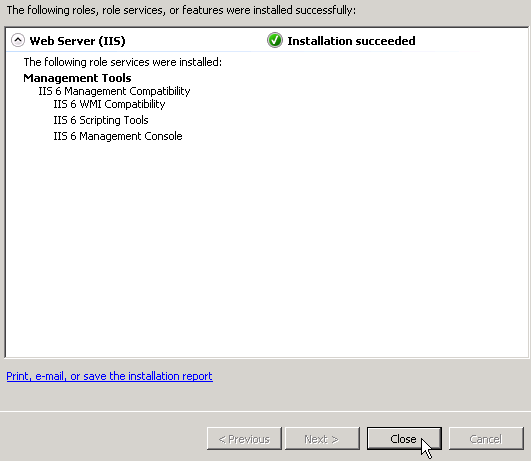

Verify that the installation was completed successfully, and click Close.

Show Screenshot for Step



7 .

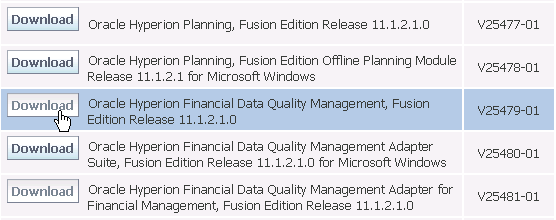

Download the FDM installation files. On the Oracle e-Delivery site, locate Oracle Hyperion Financial Data Quality Management, Fusion Edition Release 11.1.2.1.0, and click Download.

Show Screenshot for Step



8 .

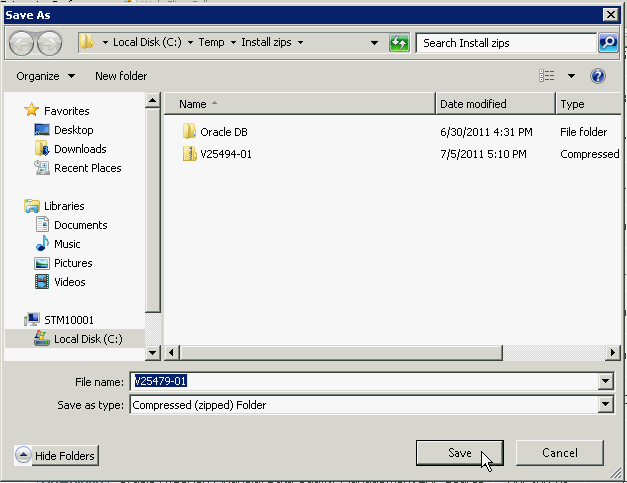

Save the V25479-01.zip file to a temporary directory.

Show Screenshot for Step



9 .

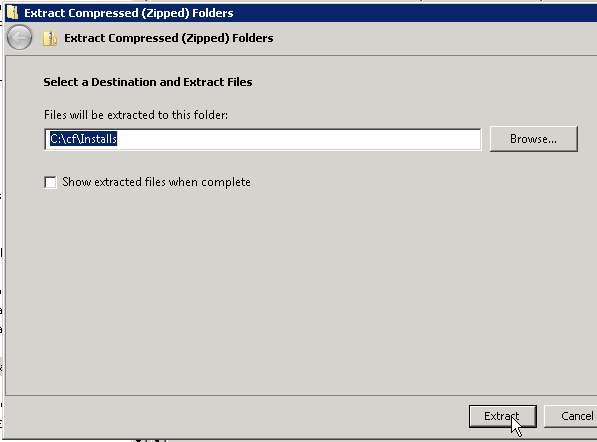

Extract the ZIP file to the location where your installation files are stored.

Show Screenshot for Step

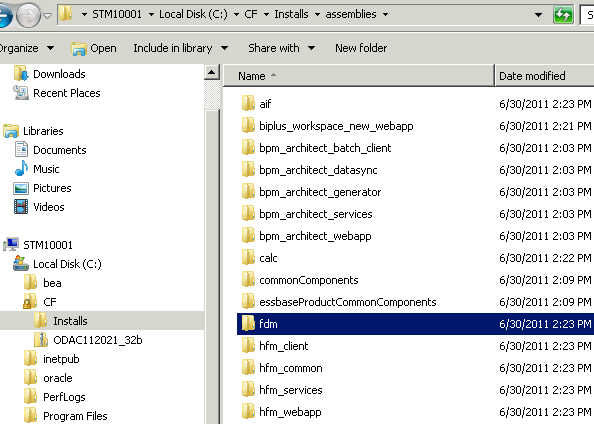

10 .

Navigate to the assemblies folder where your installation files are stored, and confirm that it contains the fdm folder.

Show Screenshot for Step



Installing Financial Data Quality Management

In this topic, you use Enterprise Performance Management (EPM) System Installer to install all components of FDM.

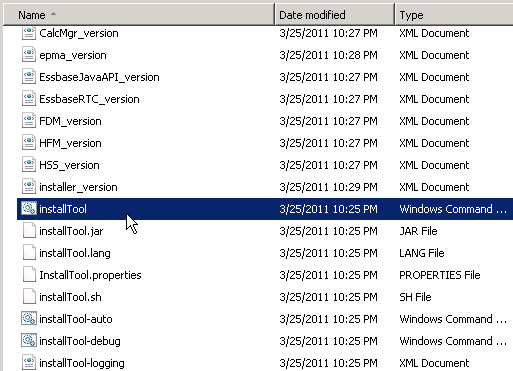

1 .

Navigate to your Oracle EPM System installation directory and double-click InstallTool.cmd to launch EPM System Installer.

Show Screenshot for Step

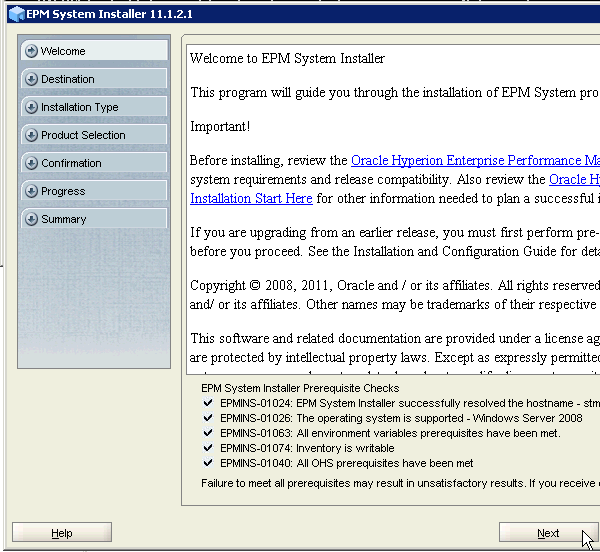

2 .

On the Welcome page of EPM System Installer 11.1.2.1, verify that the installation prerequisites have been met, and click Next.

Show Screenshot for Step



3 .

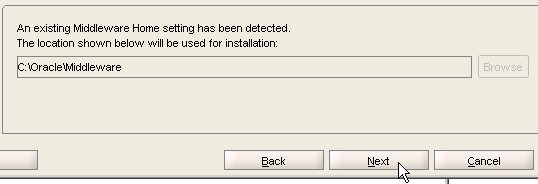

Accept the existing Middleware Home directory, and click Next.

Show Screenshot for Step

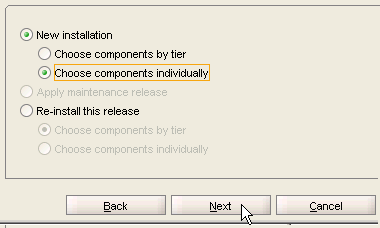

4 .

On the Installation Type panel, under New Installation, select Choose components individually, and click Next.

Show Screenshot for Step



5 .

Select FDM, and click Next.

Note: Oracle® Hyperion Financial Data Quality Management ERP Integration Adapter for Oracle Applications, Fusion Edition (ERP Integrator) is installed with FDM.

Show Screenshot for Step

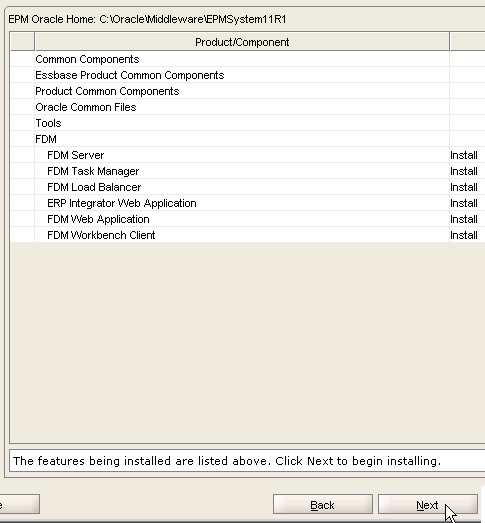

6 .

On the Confirmation panel, review the components to be installed, and click Next to begin the installation.

Show Screenshot for Step

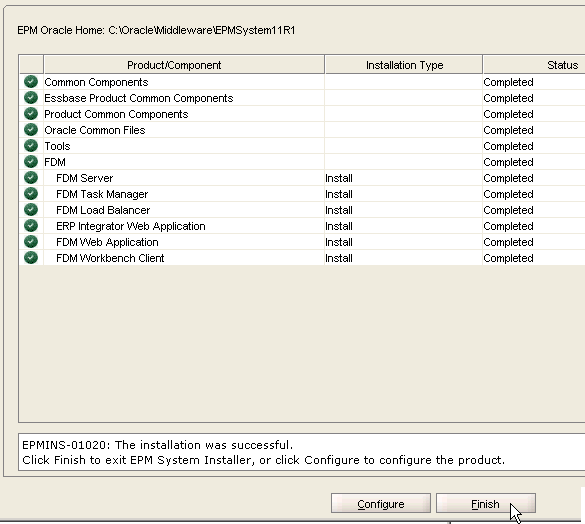

7 .

Confirm that all components of FDM were installed successfully, and click Finish to close EPM System Installer.

Show Screenshot for Step



Running EPM System Configurator for FDM

In this topic, you run EPM System Configurator to configure FDM and ERP Integrator.

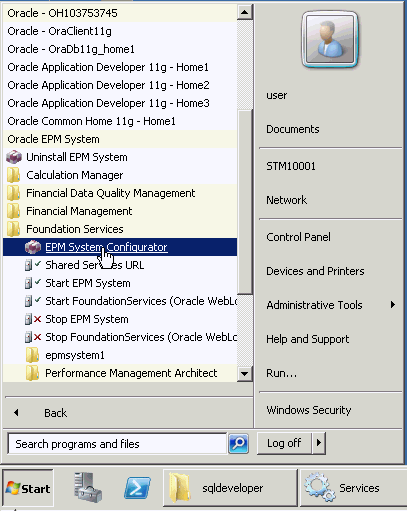

1 .

Select Start, then Programs, then Oracle EPM System, then Foundation Services, and then EPM System Configurator.

Show Screenshot for Step

EPM System Configurator is displayed.

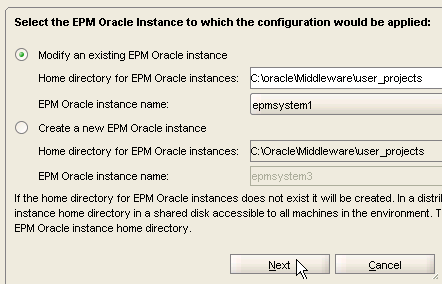

2 .

On the Oracle Instance panel, select Modify an existing EPM Oracle instance, and click Next.

Show Screenshot for Step


3 .

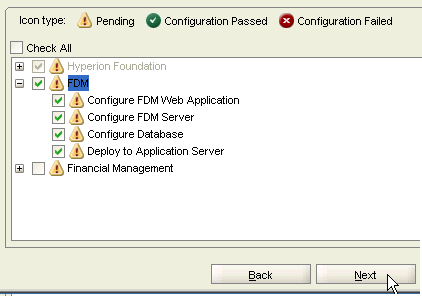

On the Task Selection panel, select all tasks under FDM, and click Next.

Show Screenshot for Step


4 .

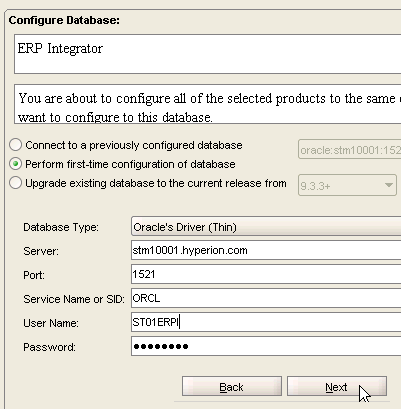

On the Database Configuration panel, perform the following actions:.

  1. Select Perform 1st-time configuration of database.
  2. Enter the database connection details for the ERP Integrator database.
  3. Click Next.

Show Screenshot for Step

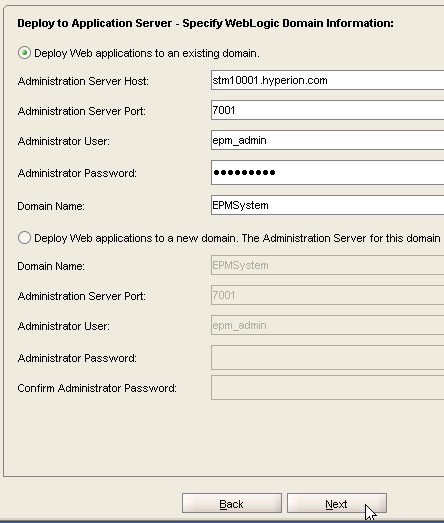

5 .

On the Weblogic Domain Information panel, select Deploy Web applications to an existing domain, and click Next.

Show Screenshot for Step


6 .

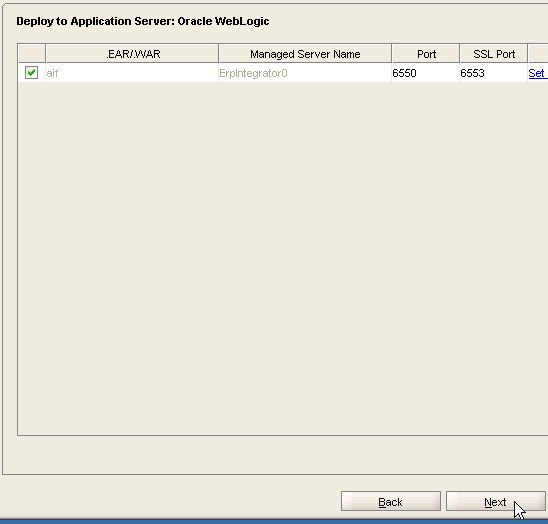

On the Oracle WebLogic panel, accept the default values, and click Next.

Show Screenshot for Step


7 .

On the Confirmation panel, review the configuration tasks to be performed, and click Next.

Show Screenshot for Step

The products are configured with the settings that you specified.


8 .

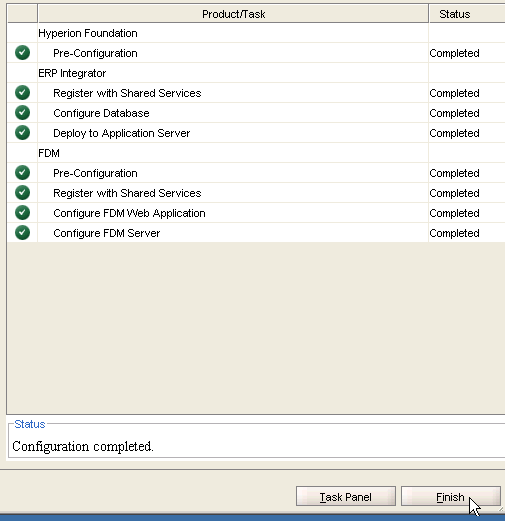

On the Summary panel, confirm that all configuration tasks were completed successfully, and click Finish to close EPM System Configurator.

Show Screenshot for Step


Configuring the Web Server

In this topic, you configure the Web Server. The Web-based interface provides end users and administrators access to a number of FDM features.

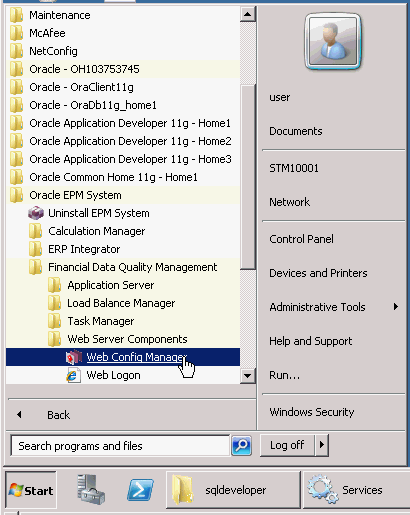

1 .

Select Start, then Programs, then Oracle EPM System, then Financial Data Quality Management, then Web Server Components, and then Web Config Manager.

Show Screenshot for Step

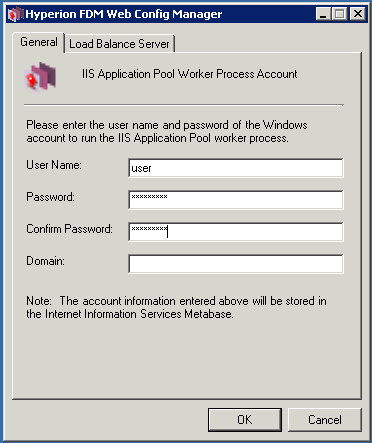

Hyperion FDM Web Config Manager is displayed.



2 .

Enter the user name, password, and domain of the Windows account under which the .NET Web process will run.

Note: This account can be a local or a domain account, and it must have administrator rights to the Web Server.

Show Screenshot for Step


3 .

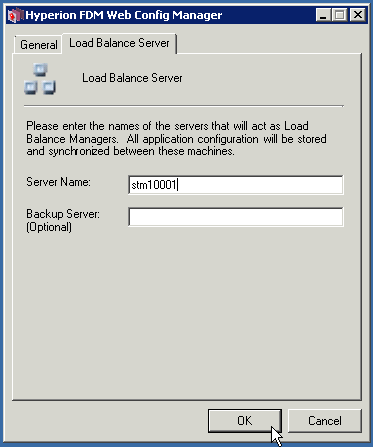

On the Load Balance Server tab, enter the Load Balance server name, and click OK.

Show Screenshot for Step

The load balance server is the computer that stores FDM application configurations and performs load balancing on FDM application servers. You may also specify a backup load balance server.


4 .

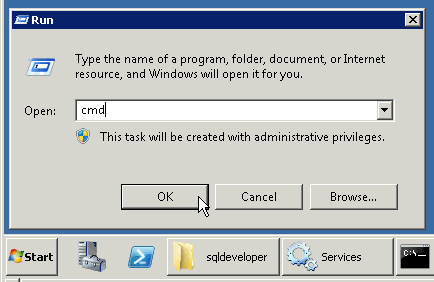

Select Start, and then Run, type cmd, and click OK to open a command prompt.

Show Screenshot for Step

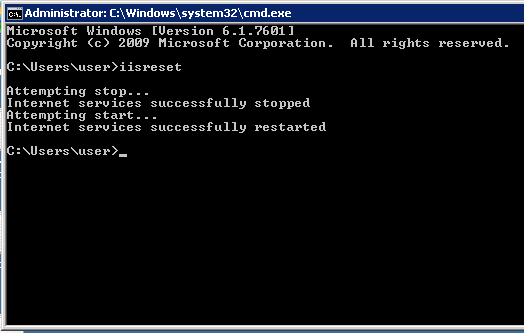

5 .

Type iisreset to restart IIS.

Show Screenshot for Step


Configuring Task Manager and Application Manager

Task Manager installs a Windows service that runs scheduled tasks (FDM scripts) at specified intervals. You can schedule tasks to run repeatedly on a daily, weekly, or monthly basis. The Application Server component enables the execution of resource-intensive tasks on a server other than the Web server, and thus can be used to limit database and file system access to a server behind a firewall (when the Web server is in front of the firewall).

In this topic, you assign the "Log on as a service" user permission to your administrator account. This user right is required for running scheduled tasks in Task Manager. You then configure the Task Manager and Application Manager components.

1 .

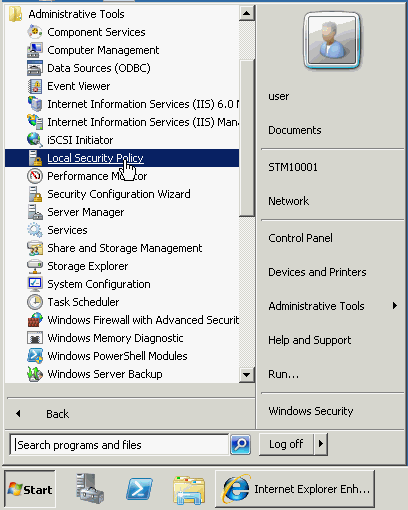

Select Start, then Programs, then Administrative Tools, and then Local Security Policy.

Show Screenshot for Step


2 .

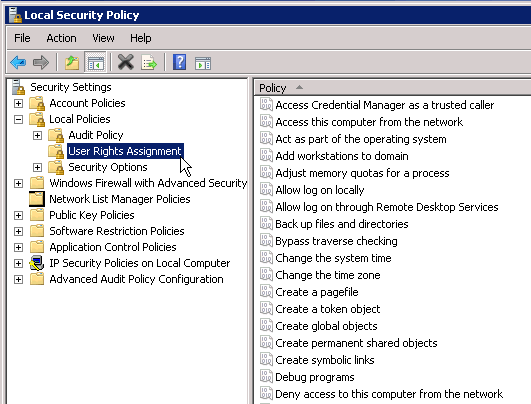

Expand Local Policies, and then User Rights Assignment.

Show Screenshot for Step

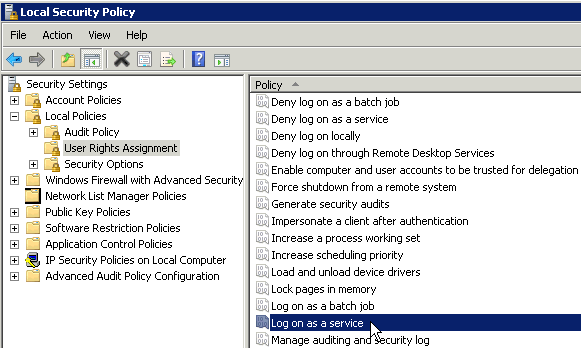

3 .

In the right pane, double-click Log on as a service.

Show Screenshot for Step

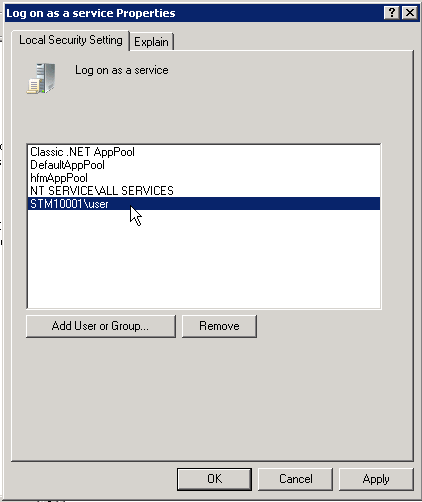

4 .

In the "Log on as a service Properties" dialog box, perform these actions:

  1. Verify that your administrator account is listed, or click Add User or Group to add your admin account.
  2. Click OK to close the dialog box.
  3. Select File, and then Exit to close the Local Security Policies window.

Show Screenshot for Step


5 .

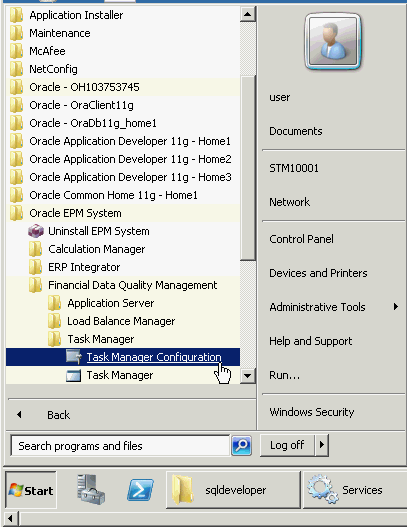

Select Start, then Programs, then Oracle EPM System, then Financial Data Quality Management, then Task Manager, and then Task Manager Configuration.

Show Screenshot for Step


6 .

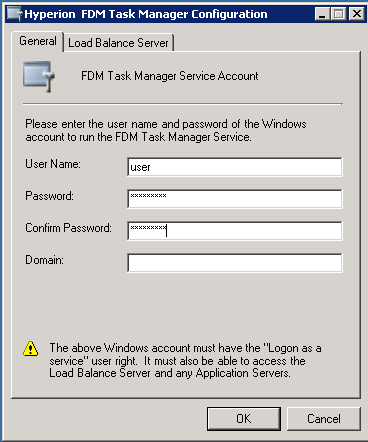

Enter the user name and password of the Windows account under which the Task Manager service and the FDM DCOM objects run.

Note: The Windows account must have full control permission for the FDM application folders that reside on the data server, as well as rights to the target system.

Show Screenshot for Step

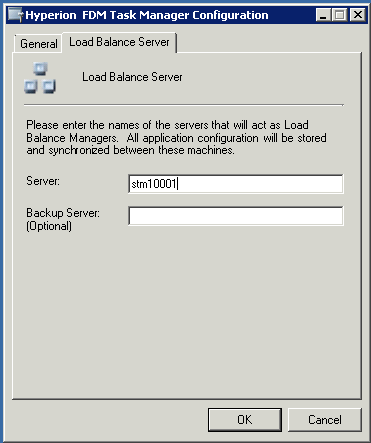

7 .

On the Load Balance Server tab, enter the name of your load balance server. You can also enter a backup load balance server.

Show Screenshot for Step


8 .

Select Start, then Programs, then Oracle EPM System, then Financial Data Quality Management, then Application Server, and then Application Server Config Manager.

Show Screenshot for Step


9 .

Enter the user name and password of the Windows account under which the application server DCOM objects run, and click OK.

Note: The Windows account must have full control permission for the FDM application folders that reside on the data server, as well as rights to the target system.

Show Screenshot for Step


Configuring Load Balance Manager

Load Balance Manager enables you to balance the load on the FDM application servers and store the FDM application configuration. A common scenario is to install Load Balance Manager on a computer that is running the Application Server component.

In this topic, you configure Load Balance Manager by specifying the FDM application servers to use for load balancing.

1 .

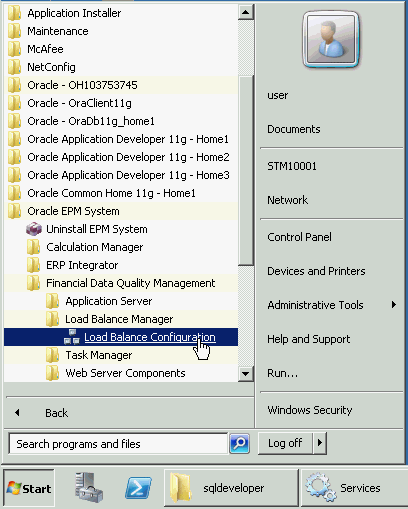

Select Start, then Programs, then Oracle EPM System, then Financial Data Quality Management, then Load Balance Manager, and then Load Balance Configuration.

Show Screenshot for Step

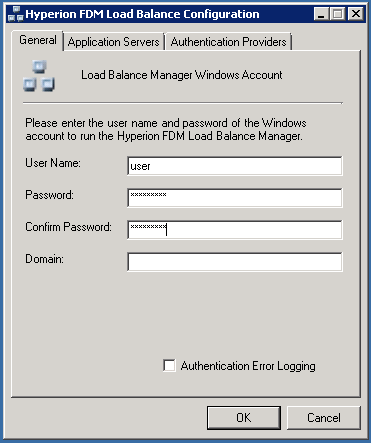

2 .

Enter the user name and password of the Windows account under which the Load Balance Manager DCOM objects run.

Note: The Windows account must have full control permission for the FDM application folders that reside on the data server, as well as rights to the target system.

Show Screenshot for Step

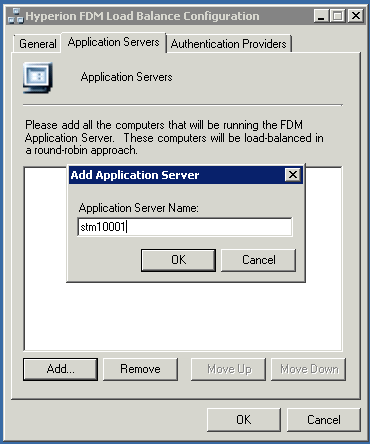

3 .

On the Application Servers tab, click Add, and enter the names of all servers that run the FDM Application Server component.

Show Screenshot for Step


4 .

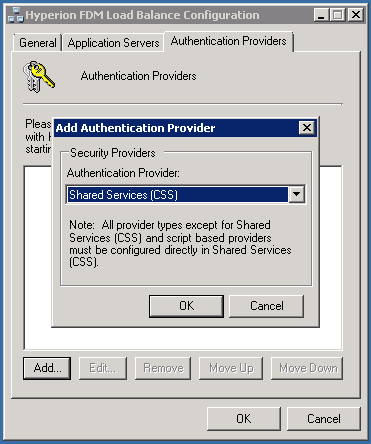

On the Authentication Providers tab, click Add, and select the authentication provider that you will use for FDM. You can add Visual Basic Script (VBScript), Single Sign-on script (SSO script), and Common Shared Services (CSS) as authentication providers. In this tutorial, you select Shared Services (CSS).

Show Screenshot for Step


5 .

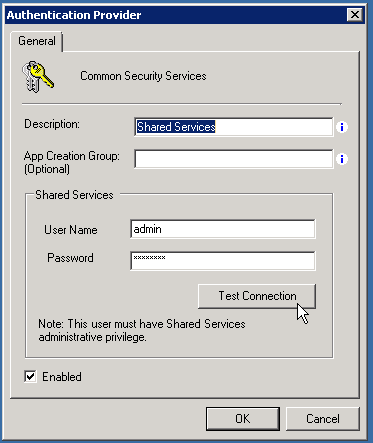

On the Authentication Provider tab, perform the following actions:

  1. Enter a description for the provider.
  2. Enter your Shared Services admin user name and password.
  3. Click Test Connection.

Show Screenshot for Step


6 .

Verify that the test succeeded, and click OK.

Show Screenshot for Step


7 .

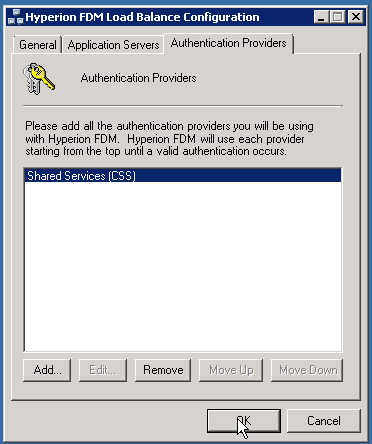

Confirm that your authentication provider is displayed, and click OK.

Show Screenshot for Step

Note: Only accounts in the added URLs can access FDM. If no URLs are specified, the entire directory tree is searched.


Configuring Workbench

Workbench is a Windows client program that provides an administration and development environment. It enables you to perform common administrator tasks, such as creating locations, building import formats, and creating validation and logic groups. It also enables you to administer integration adapters, scripts, and reports.

In this topic, you configure Workbench by defining a Load Balance group.

1 .

Select Start, then Programs, then Oracle EPM System, then Financial Data Quality Management, then Workbench, and then Workbench Client.

Show Screenshot for Step


2 .

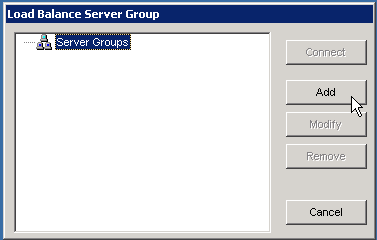

In the Load Balance Server Group dialog box, click Add.

Show Screenshot for Step


3 .

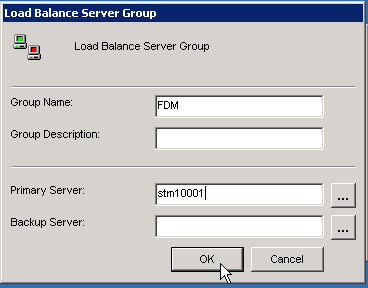

Enter a group name and description, enter the name of your primary load balance server, and click OK.

Note: You can also add a backup server name.

Show Screenshot for Step

A domain name, IP address, and server name are acceptable formats in which to designate the server. You can browse for a server by clicking .

Creating Financial Data Quality Management Applications

In this topic, you create an FDM application and database. After creating the new application, you install the standard reports and templates.

1 .

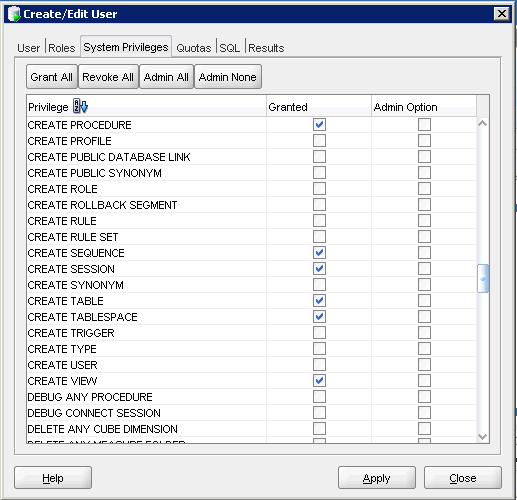

Follow the steps required by your database provider to ensure that your database administrator account has permission to create a new database.

Show Screenshot for Step


2 .

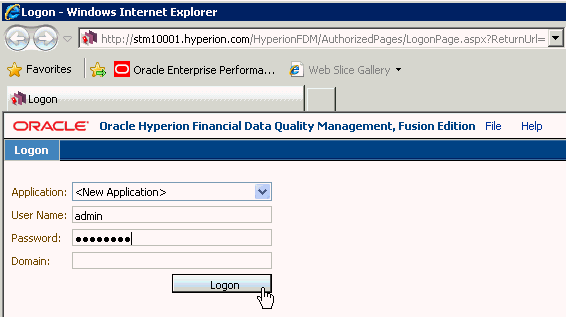

Log on to FDM by performing the following actions:

  1. Select Start, then Programs, then Oracle EPM System, then Financial Data Quality Management, then Web Server Components, and then Web Logon.
  2. Select <New Application>, and enter the user name and password of an account that can create FDM applications.
  3. Click Logon.

Show Screenshot for Step

Note: The specified account is added to the FDM application as an FDM administrator.


3 .

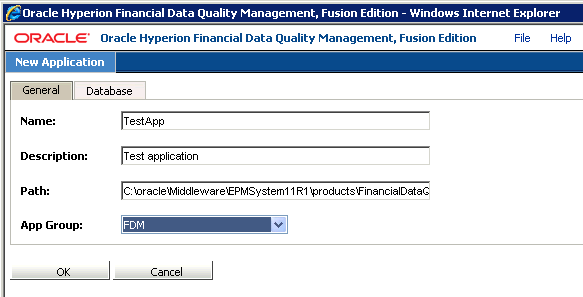

On the General tab in the New Application form, enter the name, description, path, and application group of the new application.

Show Screenshot for Step

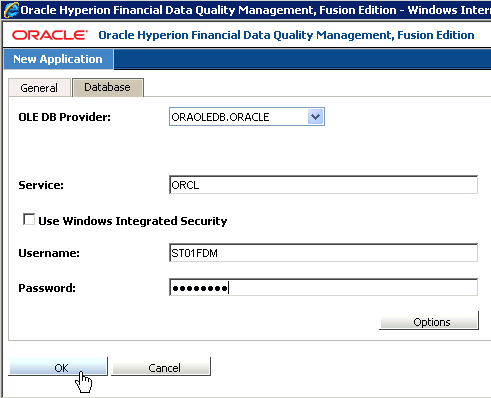

4 .

On the Database tab perform the following actions:

  1. In the OLE DB Provider list, select SQLOLEDB (SQL Server) or ORAOLEDB.ORACLE (Oracle). In this tutorial, you select Oracle.
  2. Enter the database service name and the user name and password of the FDM database administrator.
  3. Click OK.

Show Screenshot for Step


5 .

Verify that the application was created successfully, and click OK.

Show Screenshot for Step

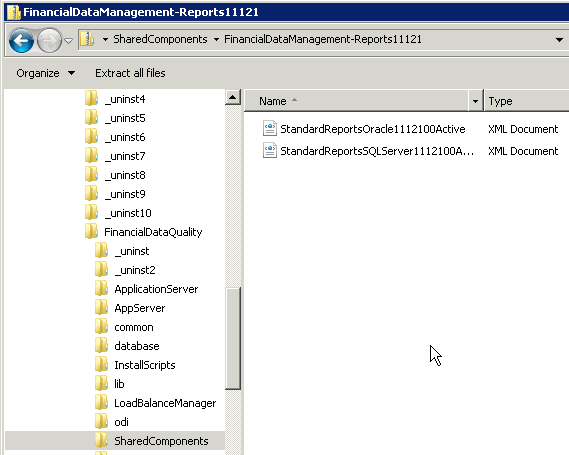

6 .

Navigate to the EPM_ORACLE_HOME/products/FinancialDataQuality/SharedComponents directory and open the FinancialDataManagement-Reports11121.zip file.

This ZIP contains the standard reports files for use with Oracle or SQL Server databases.

Show Screenshot for Step

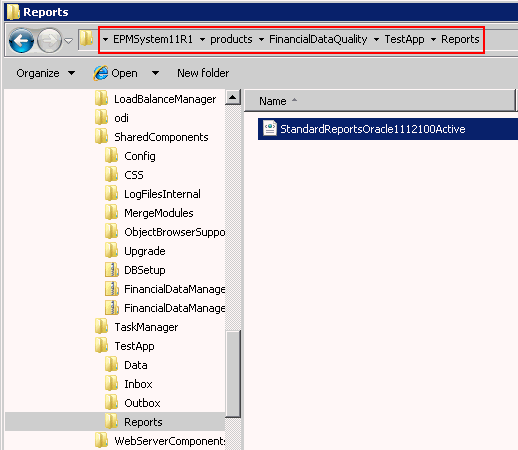

7 .

Extract the reports file for your database to the EPM_ORACLE_HOME/products/FinancialDataQuality/TestApp/Reports folder. In this tutorial, you extract the StandardReportsOracle1112100Active.xml file.

Show Screenshot for Step


8 .

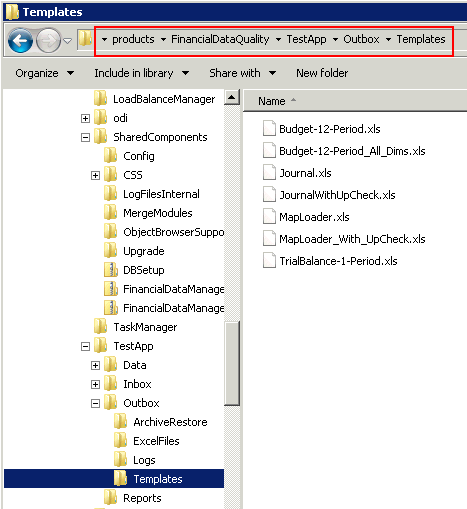

Extract the templates file to the EPM_ORACLE_HOME/products/FinancialDataQuality/TestApp/Outbox/Templates folder.

Show Screenshot for Step


9 .

Select Start, then Programs, then Oracle EPM System, then Financial Data Quality Management, then Workbench, and then Workbench Client.

Show Screenshot for Step


10 .

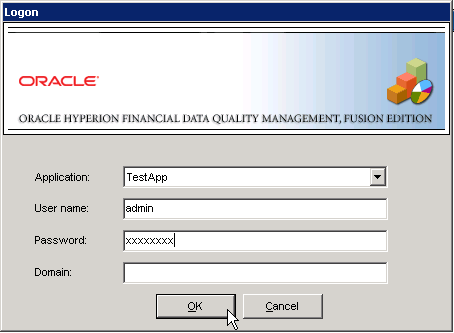

Select your application, enter the user name and password, and click OK.

Show Screenshot for Step


11 .

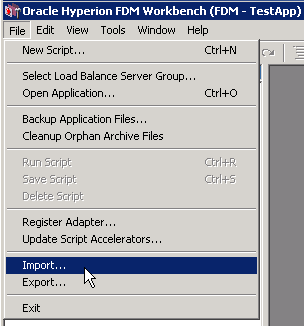

Select the Report tab, and then select File, and then Import.

Show Screenshot for Step


12 .

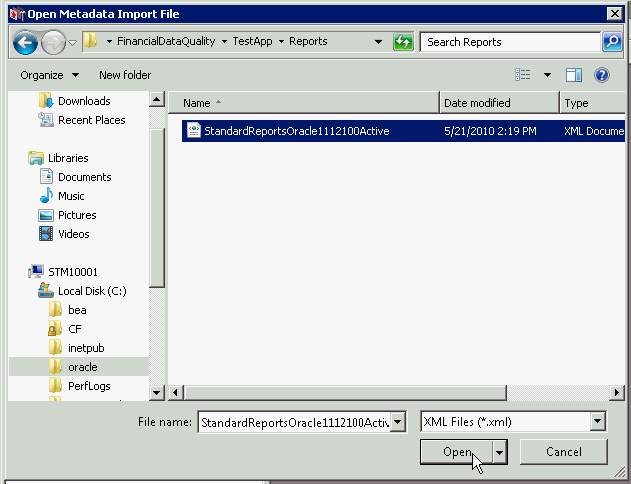

Browse to where you unzipped the StandardReportsOracle1112100Active.xml file, and click Open.

Show Screenshot for Step


13 .

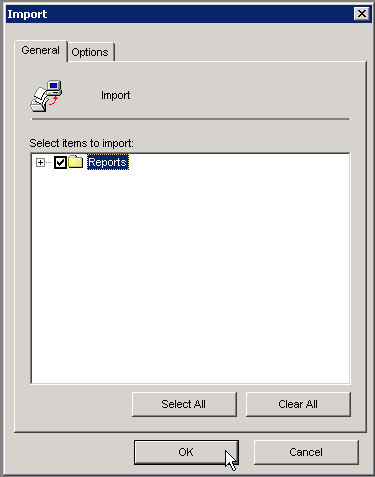

On the General tab, select Reports and click OK.

Show Screenshot for Step


14 .

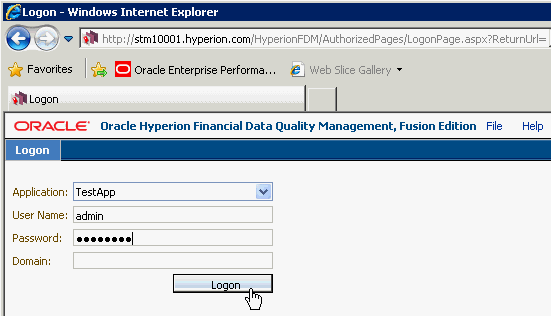

Perform the following actions to log on to the FDM Web client and view the templates.

  1. Select Start, then Programs, then Oracle EPM System, then Financial Data Quality Management, then Web Server Components, and then Web Logon.
  2. Select your application, and enter your user name and password.
  3. Click Logon.

Show Screenshot for Step


15 .

In the navigation pane, select Tools, and then Templates to view the imported templates.

Show Screenshot for Step


Installing and Configuring Financial Management Adapters

After creating an FDM application, you install and configure the Financial Management adapters. Financial Management adapters enable interaction between the FDM application and the Financial Management applications.

Adapters contain two components—DLL/EXE and XML metadata. DLL/EXE files contain the system-specific instructions for interacting with target or source systems. The XML files contain all data that relates to the current FDM application.

In this topic, you install the Financial Management adapters and create a connection to a Financial Management application.

1 .

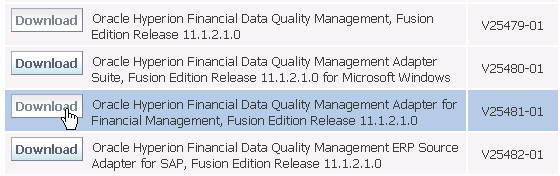

On the Oracle E-Delivery site, select Oracle Hyperion Financial Data Quality Management Adapter for Financial Management, Fusion Edition Release 11.1.2.1.0, and click Download.

Show Screenshot for Step

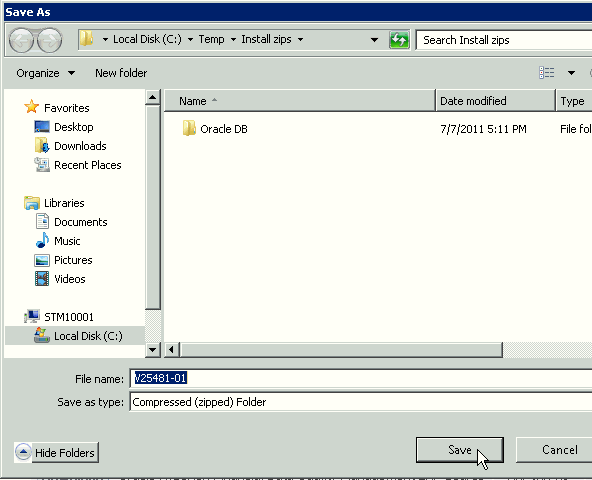

2 .

Save the V25481-01.zip file to a temporary directory.

Show Screenshot for Step


3 .

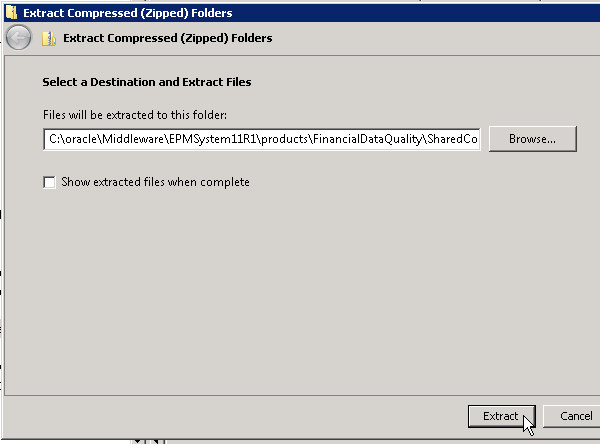

Extract the V25481-01.zip file to EPM_HOME\products\FinancialDataQuality\SharedComponents.

Show Screenshot for Step


4 .

Select Start, then Programs, then Oracle EPM System, then Financial Data Quality Management, then Workbench, and then Workbench Client.

Show Screenshot for Step


5 .

Select your application, enter the user name and password, and click OK.

Show Screenshot for Step


6 .

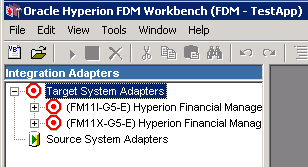

On the Adapters tab, select File, then Import.

Show Screenshot for Step

The Open Metadata Import File dialog box is displayed.


7 .

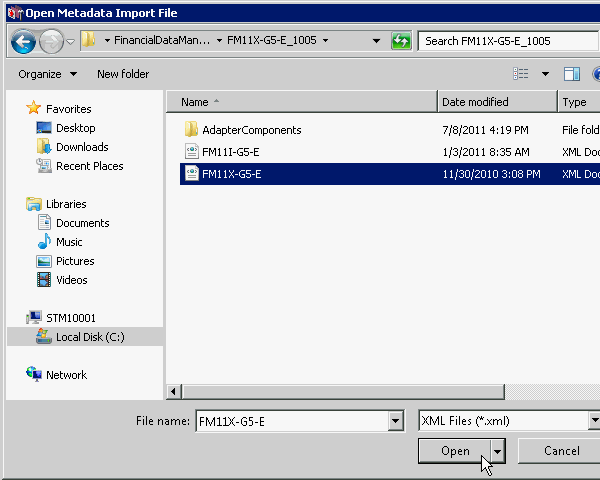

Select FM11x-G5-E.xml, and click Open.

Show Screenshot for Step


8 .

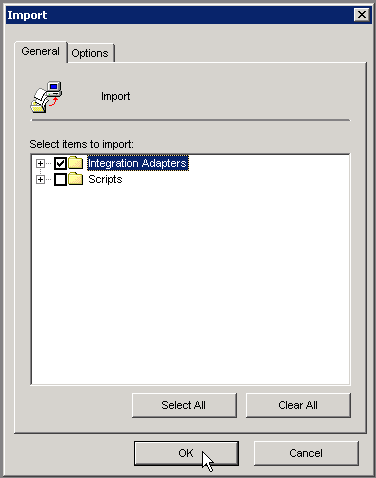

On the General tab, select Integration Adapters, and click OK.

Show Screenshot for Step


9 .

On the Adapters tab, select File, then Import.

Show Screenshot for Step

The Open Metadata Import File dialog box is displayed.


10 .

Select FM11i-G5-E.xml, and click Open.

Show Screenshot for Step


11 .

On the General tab, select Integration Adapters, and click OK.

Show Screenshot for Step

Note: FM11x-G5-E.xml is the standard HFM adapter, and FM11i-G5-E.xml is the Intercompany Detail adapter.


12 .

Verify that the two adapters are displayed under Target System Adapters.

Show Screenshot for Step


13 .

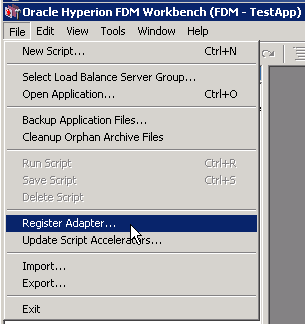

Select File, and then Register Adapter.

Show Screenshot for Step


14 .

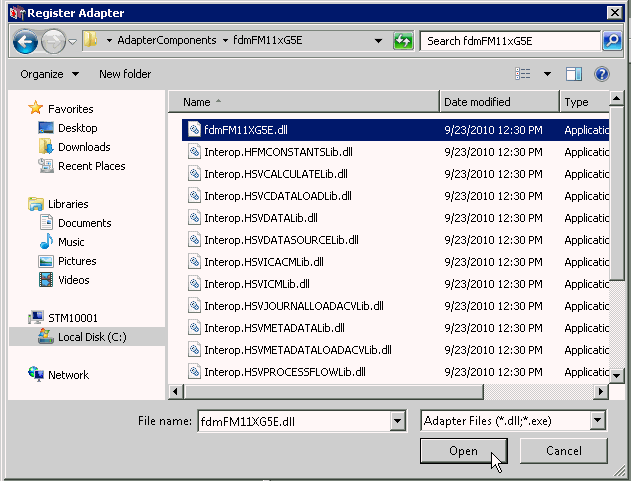

Select fdmFM11XG5E.dll, and click Open.

Show Screenshot for Step


15 .

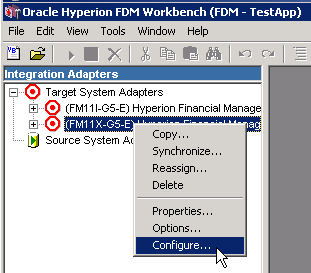

Right-click FM11X-G5-E, and select Configure to configure the adapter.

Show Screenshot for Step


16 .

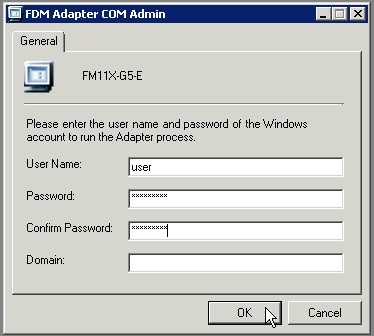

Enter the user name and password of the FDM service account.

Note: The user name should be the one that was used to configure the other FDM components.

Show Screenshot for Step


17 .

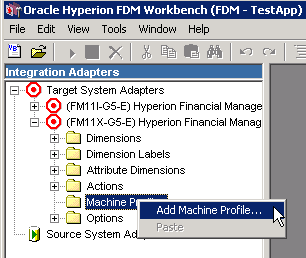

In the navigation pane, expand Target System Adapters, then FM11x-G5-E, right-click Machine Profile, and select Add Machine Profile.

Show Screenshot for Step


18 .

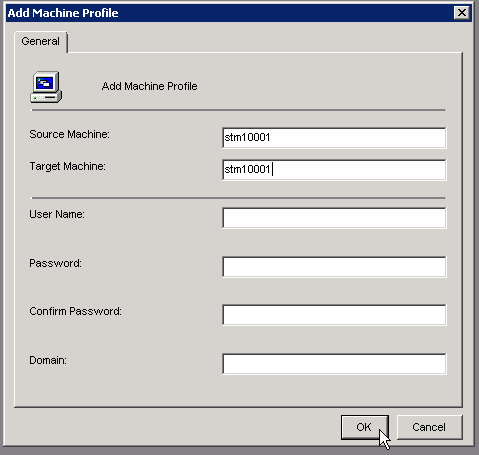

In the Add Machine Profile dialog box, enter the required information:

  • Source Machine is the FDM application server name.
  • Target Machine is the computer name or IP address of the application server or application cluster.
  • Optional: To override the logon method specified by the integration settings, specify a user name, password, and domain for the local computer.

Show Screenshot for Step


19 .

Perform the following actions to log on to the FDM Web client and view the templates:

  1. Select Start, then Programs, then Oracle EPM System, then Financial Data Quality Management, then Web Server Components, and then Web Logon.
  2. Select your application, and enter your user name and password.
  3. Click Logon.

Show Screenshot for Step


20 .

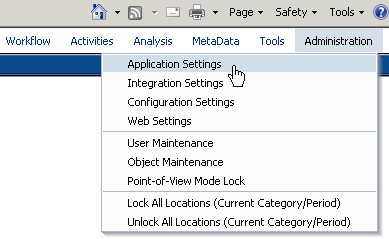

Select Administration, and then Application Settings.

Show Screenshot for Step


21 .

In the System Code list, select FM11X-G5-E, and click Save.

Show Screenshot for Step


22 .

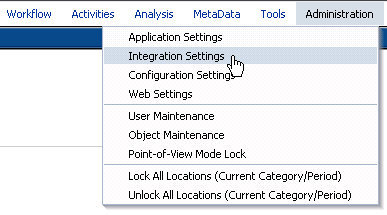

Select Administration, then Integration Settings.

Show Screenshot for Step


23 .

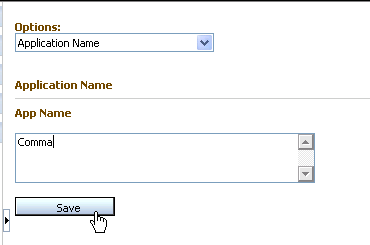

Perform the following actions to set up the Financial Management application.

  1. In the Options list, select Application Name.
  2. In the App Name box, enter the name of your Financial Management application.

Show Screenshot for Step


24 .

Perform the following actions to set the logon method.

  1. In the Options list, select Logon Method.
  2. In the Method list, select a logon method. In this tutorial, you select Unified.
    • Unified: The FDM user name and password are used to log on to the target system. For this option to be usable, the target user name and password and the FDM user name and password must be the same.
    • Global: The user name and password specified for global logon is passed to the target system. Users enter the same user name and password to connect to the target system.
  3. Click Save.

Show Screenshot for Step


25 .

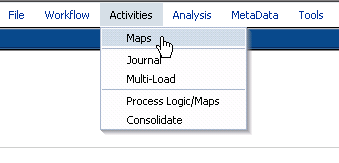

Select Activities, and then Maps to test the connection to Financial Management.

Show Screenshot for Step


26 .

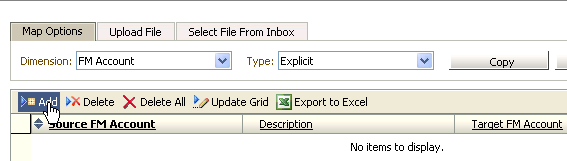

Click Add to add a row.

Show Screenshot for Step


27 .

Click in the Target FM Account cell, and select Browse for Target Value.

Show Screenshot for Step


28 .

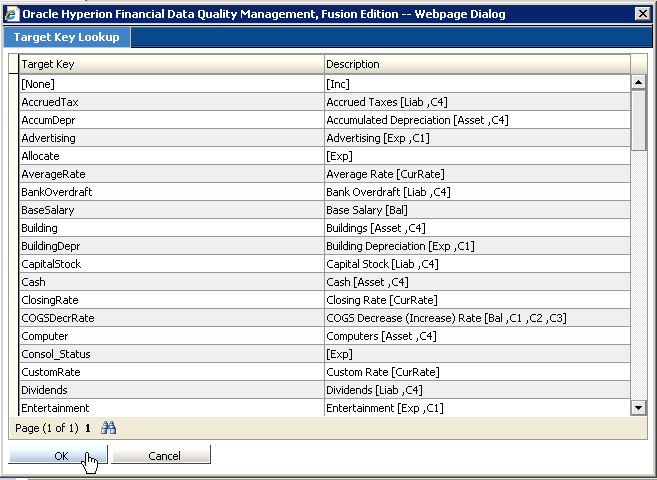

Verify that the list of accounts is from your Financial Management application.

Show Screenshot for Step

You successfully installed and configured FDM for a Financial Management application.

Summary

In this tutorial, you learned how to:

Resources

Hardware and Software Engineered to Work Together About Oracle | Oracle and Sun | Oracle RSS Feeds | Subscribe | Careers | Contact Us | Site Maps | Legal Notices | Terms of Use | Your Privacy Rights
