Database Server

Overview

Exadata Database Machine is the most versatile database platform. The Exadata Database Machine uses powerful database servers, perfect for all situations including OLTP, Analytics, Consolidation, Virtualization, horizontally scalable workloads, high-end OLTP workloads, large scale consolidation of databases, memory intensive workloads, and multi-rack data warehouses.

Using a scale-out architecture for the database server allows expansion from small to extremely large configurations to accommodate workloads of any size. Exadata X11M introduces the Database Server-Z, which is equipped with a single 32-core x86 processor and 768 GB of DDR5 memory (expandable up to 1.125 TB) providing customers with the choice of database servers to match their workload requirements. The minimal configuration of an Exadata Database Machine consists of two database servers and three storage servers, which can be elastically expanded by adding more database and/or storage servers within the same rack. Elastic configurations provide a flexible and efficient mechanism to meet any size business need.

A single rack configuration of Exadata Database Machine X11M can achieve up to 25.2 Million 8K database read1 I/O operations per second (IOPS) workloads. For data warehouse environments that require the highest performance, Exadata X11M Extreme Flash storage servers are capable of scanning up to 500 GB/s per server for a total of 8.5 TB/s2 scan throughput from a single rack configuration. These are real-world end-to-end performance figures measured running SQL workloads with standard 8K database I/O sizes inside a single rack Exadata system, unlike storage vendor performance figures based on small I/O sizes and low-level I/O tools and are therefore many times higher than can be achieved from realistic SQL workloads. Exadata's performance on real database workloads is orders of magnitude faster than traditional storage array architectures, and is also much faster than current all-flash storage arrays, whose architecture bottlenecks on flash throughput. Exadata X11M uses a combination of scale-out storage, RDMA over Converged Ethernet networking, database offload, Exadata RDMA memory accelerator, and PCIe Flash to deliver extremely high performance from memory and flash.

1Elastic configuration with 9x Exadata X11M Database Servers and 9x Exadata X11M Extreme Flash or 9x Exadata X11M High Capacity Storage Servers
2Elastic configuration with 2x Exadata X11M Database Servers and 17x Exadata X11M High Capacity or 17x Exadata X11M Extreme Flash Storage Servers

Specifications

The Exadata Database Server provides the choice and flexibility to deploy everywhere customers need – on-premises, Cloud@Customer, Oracle Cloud, and multicloud. Exadata is used by thousands of organizations, including the majority of the world’s largest financial, telecom, and retail businesses, to run their most critical and demanding Oracle Database workloads. The 13th generation of Exadata builds on decades of engineering excellence to power mission-critical AI, analytics, and OLTP workloads globally. Offered at the same price as the prior generation, Exadata X11M provides extreme performance, scalability, and availability for all Oracle Database workloads.

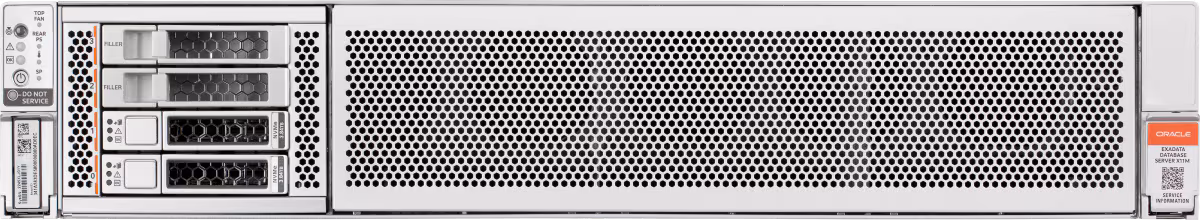

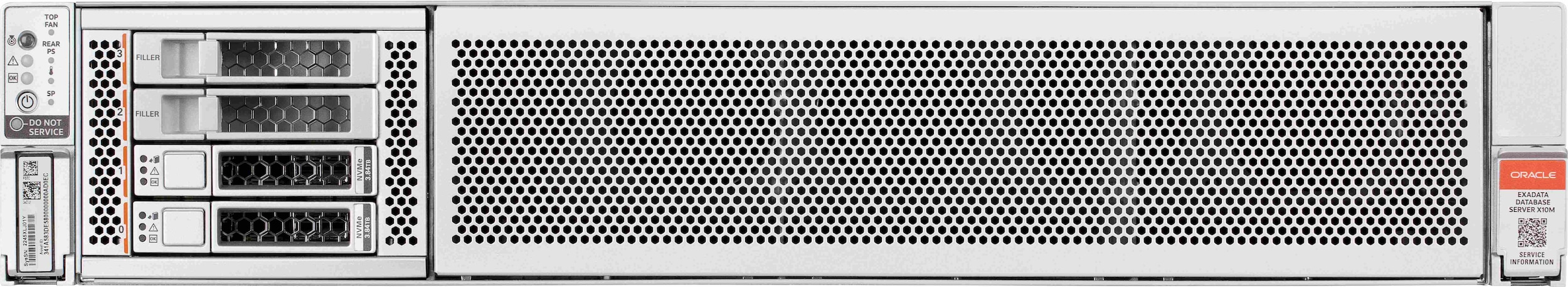

Exadata X11M Database Server Specifications

CPU
  • 2 x 96-core AMD EPYC™ 9J25 processors, 2.6 GHz (up to 4.5 GHz)
Memory
  • 512 GB (factory option)
  • 1,536 GB (factory option and field upgrade)
  • 2,304 GB (factory option and field upgrade)
  • 3,072 GB (factory option and field upgrade, max)
Flash
  • 2 x 3.84 TB Flash SSD (hot swappable),
    (upgradeable to 4 x 3.84 TB)
Network
  • Client/backup adapter 1:
    • 2 x 10/25 Gb Ethernet ports (SFP28)
  • Client/backup adapter 2:
    • 2 x 10/25 Gb Ethernet ports (SFP28)
  • Client/backup adapter 3, 4, or 5:
    • 4 x 10 Gb Ethernet ports (RJ45), or
    • 2 x 10/25 Gb Ethernet ports (SFP28), or
    • 2 x 100 Gb optical Ethernet ports (QSFP28)
  • 1 x 1 Gb Ethernet port (RJ45, management)
  • 1 x 1 Gb Ethernet port (RJ45, ILOM)
  • 2 x 100 Gb QSFP28 RoCE Fabric ports
CPU
  • 2 x 96-core AMD EPYC™ 9J25 processors, 2.6 GHz (up to 4.5 GHz)
Memory
  • 512 GB (factory option)
  • 1,536 GB (factory option and field upgrade)
  • 2,304 GB (factory option and field upgrade)
  • 3,072 GB (factory option and field upgrade, max)
Flash
  • 2 x 3.84 TB Flash SSD (hot swappable),
    (upgradeable to 4 x 3.84 TB)
Network
  • Client/backup adapter 1:
    • 2 x 10/25 Gb Ethernet ports (SFP28)
  • Client/backup adapter 2:
    • 2 x 10/25 Gb Ethernet ports (SFP28)
  • Client/backup adapter 3, 4, or 5:
    • 4 x 10 Gb Ethernet ports (RJ45), or
    • 2 x 10/25 Gb Ethernet ports (SFP28), or
    • 2 x 100 Gb optical Ethernet ports (QSFP28)
  • 1 x 1 Gb Ethernet port (RJ45, management)
  • 1 x 1 Gb Ethernet port (RJ45, ILOM)
  • 2 x 100 Gb QSFP28 RoCE Fabric ports

Database Server-Z

As an entry point into the Exadata ecosystem, or for the smaller workloads, Exadata Database Server-Z contains a single CPU, smaller memory footprint, and fewer network options.

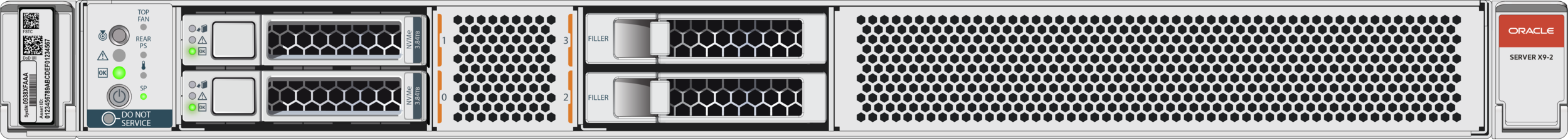

Exadata X11M Database Server-Z Specifications

CPU
  • 1 x 32-core AMD EPYC™ 9J15 processor 2.95 GHz (up to 4.4 GHz)
Memory
  • 768 GB (factory option)
  • 1,152 GB (factory option and field upgrade, max)
Flash
  • 2 x 3.84 TB Flash SSD (hot swappable),
    (upgradeable to 4 x 3.84 TB)
Network
  • Client/backup adapter 1:
    • 2 x 10/25 Gb Ethernet ports (SFP28)
  • Client/backup adapter 2:
    • 2 x 10/25 Gb Ethernet ports (SFP28)
  • Client/backup adapter 3:
    • 4 x 10 Gb Ethernet ports (RJ45), or
    • 2 x 10/25 Gb Ethernet ports (SFP28), or
    • 2 x 100 Gb optical Ethernet ports (QSFP28)
  • 1 x 1 Gb Ethernet port (RJ45, management)
  • 1 x 1 Gb Ethernet port (RJ45, ILOM)
  • 2 x 100 Gb QSFP28 RoCE Fabric ports
CPU
  • 1 x 32-core AMD EPYC™ 9J15 processor 2.95 GHz (up to 4.4 GHz)
Memory
  • 768 GB (factory option)
  • 1,152 GB (factory option and field upgrade, max)
Flash
  • 2 x 3.84 TB Flash SSD (hot swappable),
    (upgradeable to 4 x 3.84 TB)
Network
  • Client/backup adapter 1:
    • 2 x 10/25 Gb Ethernet ports (SFP28)
  • Client/backup adapter 2:
    • 2 x 10/25 Gb Ethernet ports (SFP28)
  • Client/backup adapter 3:
    • 4 x 10 Gb Ethernet ports (RJ45), or
    • 2 x 10/25 Gb Ethernet ports (SFP28), or
    • 2 x 100 Gb optical Ethernet ports (QSFP28)
  • 1 x 1 Gb Ethernet port (RJ45, management)
  • 1 x 1 Gb Ethernet port (RJ45, ILOM)
  • 2 x 100 Gb QSFP28 RoCE Fabric ports
