Command Summary: Basic Operations with the Image Packaging System

This article summarizes the commands that control the Image Packaging System in Oracle Solaris 11, and shows you how to perform basic operations with them.

To help system administrators get up to speed quickly using the Image Packaging System (IPS) in Oracle Solaris 11, we collected a summary of commonly used IPS commands in the "Oracle Solaris 11 Cheat Sheet for the Image Packaging System." This article expands on that cheat sheet by reviewing basic IPS concepts and showing you how to perform basic operations with those commands.

What Is the Image Packaging System, Again?

IPS is a new model for software packaging introduced in Oracle Solaris 11.  It is a comprehensive delivery framework that spans the full software lifecycle, addressing software installation, system updates, upgrades, and software package removal. In contrast to the SVR4 packaging model in earlier Oracle Solaris releases, IPS radically changes how you perform software maintenance because it eliminates OS patching. Instead, IPS relies on the use of network-centric software repositories for software updates as well as for installation.

IPS pulls software packages from locally connected or remote software package repositories, automatically checking for software dependencies and installing the required software. Since IPS checks software versions in non-global zones for consistency with the global zone, it also aids in administering the software configuration for zones in a system.

Although IPS does not always generate an Oracle Solaris 11 boot environment (BE) when you add or update software, it is generally good administrative practice to do so. Since creating a new BE takes advantage of built-in ZFS snapshot capabilities, you can build a system clone almost instantly without requiring additional space. Creating a BE allows you to perform the update even if the system is a live production system. You can then activate the updated BE at the next reboot, and if there's a problem, you can roll back to the previous software state. In this way, IPS facilitates safe and controlled transitions between software configurations.

For more technical information about IPS, go to the Oracle Solaris 11 Lifecycle Management Technology Page.

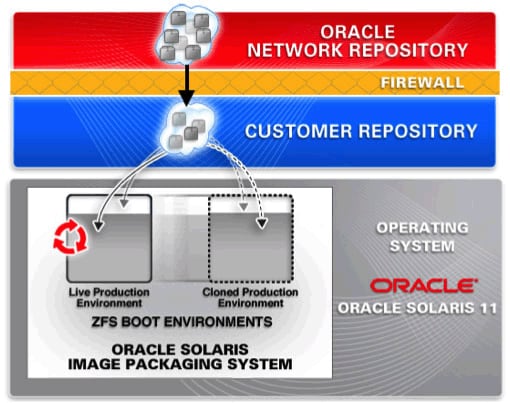

Figure 1. Oracle Solaris IPS can apply updates to a clone of the current boot environment.

Installing Packages and Updating a System

The primary administrative interface for IPS is the pkg command. Many of its subcommands query the current software state (for example, the list, info, contents, search, and history subcommands) and can be performed by any user. Only privileged administrators, however, can perform subcommands that change the system software image (such as pkg install, pkg uninstall, or pkg update).

Table 1 lists a few examples of Oracle Solaris 11 pkg commands and their SVR4 equivalents.

In the following example, the pkg install command installs the diagnostic/wireshark package, along with dependencies if any exist:

# pkg install diagnostic/wireshark

The pkg update command updates installed packages to the newest versions, including packages that are installed in Oracle Solaris 11 zones. To preview its actions, use the -nv argument, for example:

# pkg update -nv

To create a new boot environment for an update called be_fix-nfs, enter this command:

# pkg update --be-name be_fix-nfs

The pkg list, pkg info, pkg contents, and pkg search commands are typically the tools you use to investigate and learn more about installed and uninstalled packages. For example, on an Oracle Solaris 11 system, the pkg list command lists what's currently installed:

$ pkg list

To display information about a specific installed package called wireshark, enter this command:

$ pkg info wireshark

To search currently configured software repositories for information about an uninstalled package called xchat, use the -r argument to pkg info:

$ pkg info -r xchat

To display the contents of the wireshark package, enter this command:

$ pkg contents wireshark

To display all locally installed packages that match the string gcc, enter the following:

$ pkg search -l gcc

To list all packages in the configured software repositories containing header file gcrypt-module.h, enter this command:

$ pkg search 'gcrypt-module.h'

To find all packages installed locally that have a dependency on library/libxml2, enter the following:

$ pkg search --l -o pkg.name 'depend::library/libxml2'

Understanding the Package FMRI

Some of the pkg subcommands display information about a software package in the format of a Fault Managed Resource Indicator (FMRI). An FMRI uniquely describes a software package, including the package's publisher and specific identification details, as in this sample output from pkg info:

$ pkg info wireshark

pkg://solaris/diagnostic/wireshark@2.6.1,5.11-0.175.3.33.0.5.0:20180530T182122Z

In this FMRI, solaris is the publisher, diagnostic/wireshark is the package name, 2.6.1 is the component version, 5.11 is the build version, 0.175.3.33.0.5.0 is the branch version, and 20180530T182122Z is the package time stamp. For more information about FMRI identifiers, see the pkg(1) man page.

Managing Repositories and Publishers

Software developers, including Oracle, publish their software in software package repositories. Administrators access these repositories to install new systems, add or update software packages, or search for package information. In addition, administrators can make a local copy of repositories if systems reside in a network-restricted environment (refer back to Figure 1).

You can use the pkg publisher command to show the currently configured repositories:

# pkg publisher

PUBLISHER   TYPE    STATUS   URI
solaris     origin  online   http://pkg.oracle.com/solaris/release/

Oracle Solaris 11 has a default publisher, solaris, which supplies software packages from the release repository http://pkg.oracle.com/solaris/release/.

# pkg set-publisher -G http://pkg.oracle.com/solaris11/release \

-g http://pkg.oracle.com/solaris11/support -k /path/to/ssl_key \
-c /path/to/ssl_cert solaris
# pkg publisher
PUBLISHER   TYPE    STATUS   URI
solaris     origin  online   https://pkg.oracle.com/solaris/support/

In the Oracle Technology Network article "How to Update Oracle Solaris 11 Systems From Oracle Support Repositories," Glynn Foster steps through the process of downloading security certificates and keys and switching to the support repository.

If you choose to set up a local repository copy, you need to add a new publisher at the URI, for example:

# pkg set-publisher -p http://www.example.com/solaris11

Miscellaneous Commands

The system records a history of package installations, updates, and modifications in a log file. To browse the pkg command history (including actions performed using the graphical Package Manager client), use the pkg history command. The -n option displays the specified number of the most recent operations:

# pkg history -n4

START                    OPERATION                CLIENT             OUTCOME
2018-07-19T05:45:48      fix                      pkg                Succeeded
2018-07-23T22:00:22      refresh-publishers       pkg                Succeeded
2018-07-23T22:00:47      rebuild-image-catalogs   pkg                Succeeded
2018-07-23T22:22:42      update                   pkg                Succeeded

To purge the pkg command history (which basically empties the log file), enter this:

# pkg purge-history

To verify the integrity of the current system image, enter the following:

# pkg verify

To verify the integrity of an installed package, enter a pkg verify command with the package name:

# pkg verify -v system/install/auto-install/auto-install-common

PACKAGE                                                        STATUS
pkg://solaris/system/install/auto-install/auto-install-common            ERROR
        file: usr/share/auto_install/manifest/default.xml
                ERROR: Missing: regular file does not exist

The pkg verify command validates package signatures, depending on the signature policy.

To fix errors reported by pkg verify on an installed package, use pkg fix with the --acceptoption to indicate that you accept the license terms for the specified packages, as shown in Listing 1.

# pkg fix --accept system/install/auto-install/auto-install-common

               Packages to fix:   1
       Create boot environment:  No
Create backup boot environment: Yes

Repairing: pkg://solaris/system/install/auto-install/auto-install-common@0.5.11,5.11-0.175.3.30.0.4.0:20180305T200507Z
PACKAGE                                                                 STATUS
pkg://solaris/system/install/auto-install/auto-install-common            ERROR
        file: usr/share/auto_install/manifest/default.xml
                ERROR: Missing: regular file does not exist
DOWNLOAD                                PKGS         FILES    XFER (MB)   SPEED
Completed                                1/1           1/1      0.0/0.0  2.5k/s

PHASE                                          ITEMS
Updating modified actions                        1/1
Updating package state database                 Done
Updating package cache                           0/0
Updating image state                            Done
Creating fast lookup database                   Done
Updating package cache                           1/1

Listing 1. Fixing Errors Reported by pkg verify

To prevent future updates and freeze a package's state, enter the following command:

# pkg freeze wireshark

You may want to freeze a package in a non-global zone if you do not want that package to be updated when the global zone is updated. To reverse this action and allow future updates, enter this:

# pkg unfreeze wireshark

See Also

• Download Oracle Solaris 11
• Access Oracle Solaris 11 product documentation
• Access all Oracle Solaris 11 how-to articles
• Learn more with Oracle Solaris 11 training and support
• See the official Oracle Solaris blog
• Follow Oracle Solaris on Facebook and Twitter

Also see the following resources:

• "Oracle Solaris 11 Cheat Sheet for the Image Packaging System"
• Updating Systems and Adding Software in Oracle Solaris 11.4
• Copying IPS Package Repositories
• Image Packaging System pkg(7) Man Page
• "Introducing the Basics of Image Packaging System (IPS) on Oracle Solaris 11," an Oracle Technology Network article by Glynn Foster

About the Author

Ginny Henningsen has worked for the last 15 years as a freelance writer developing technical collateral and documentation for high-tech companies. Prior to that, Ginny worked for Sun Microsystems, Inc. as a Systems Engineer in King of Prussia, PA and Milwaukee, WI. Ginny has a BA from Carnegie-Mellon University and a MSCS from Villanova University.
