Oracle by Example brandingProvisioning Autonomous Transaction Processing

section 0Before You Begin

This tutorial shows you how to log in to the Oracle Autonomous Transaction Processing console, create an Autonomous Transaction Processing database instance, and create a user. This tutorial takes approximately 15 minutes to complete.

Oracle Autonomous Transaction Processing Tutorial Series

This is the first in a series of tutorials for the Oracle Autonomous Transaction Processing. Perform the tutorials sequentially.

Background

Oracle Autonomous Transaction Processing is fully-managed, offers high-performance, and is elastic. You have all of the performance of the market-leading Oracle Database in an environment that is tuned and optimized for transaction processing workloads.

Autonomous Transaction Processing is built upon the Oracle Database, so that all applications and tools that support Oracle Database also support Autonomous Transaction Processing. These tools and applications connect to the Autonomous Transaction Processing database using standard SQL*Net connections. The tools and applications can either be in your data center or in a public cloud. Oracle Analytics Cloud and other Oracle Cloud services are preconfigured for Autonomous Transaction Processing.

In this tutorial, you create an Autonomous Transaction Processing database, connect SQL Developer to the Autonomous Transaction Processing database, and create a database end user to use in all subsequent tutorials.

What Do You Need?

  • Subscription to Oracle Autonomous Transaction Processing
    • Your Oracle Cloud user name, password, and identity domain

      Locate your account details in the New Account Information email that you received from Oracle Cloud when your user account was set up. If you don't have your New Account Information email, contact your account administrator.
  • Tenancy in Oracle Cloud Infrastructure, including the creation of a compartment and the setting of access to resources (see Oracle Cloud Infrastructure documentation for setting up your tenancy).
  • Oracle SQL Developer (see Oracle Technology Network download site). Version 18.3 or later. Versions 18.2 or later  contain enhancements for key Autonomous Transaction Processing features.
    Note:
    If you are a Windows user on 64-bit platform, download the 'Windows 64-bit with JDK 8 included' distribution as it includes the files necessary to run SQL Developer and connect to your Autonomous Transaction Processing database.

    If you are using a SQL Developer version earlier than 18.2, see the documentation topic Connecting with Oracle SQL Developer (earlier than Version 18.2).

section 1Create an Instance

Sign in to Autonomous Transaction Processing and create an instance.

  1. Sign in from https://cloud.oracle.com/home. On the Oracle Cloud page, click Sign In.

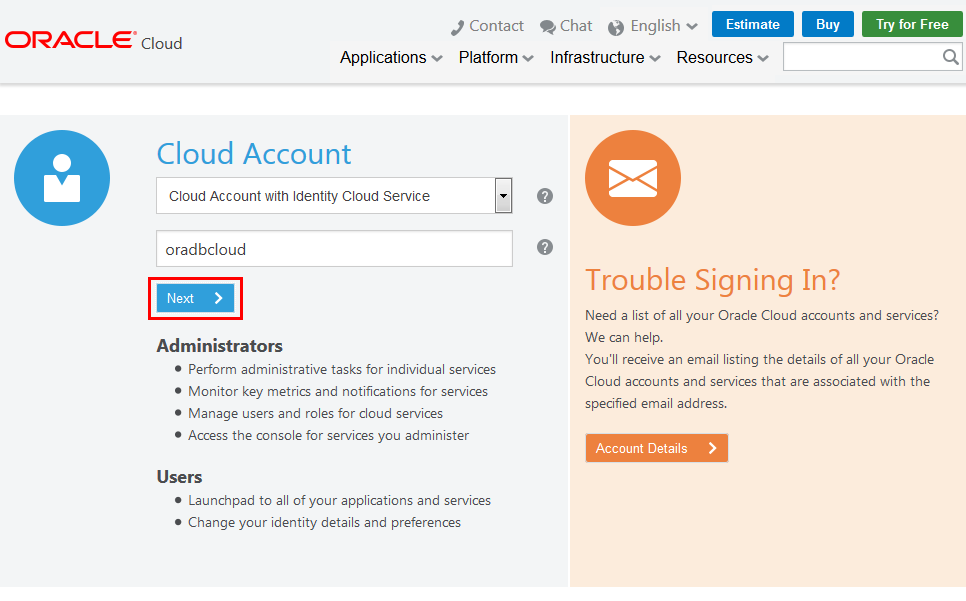

  2. On the Cloud Account page, enter your cloud account name and click Next.
    Cloud Account
    Description of the illustration cloud_login

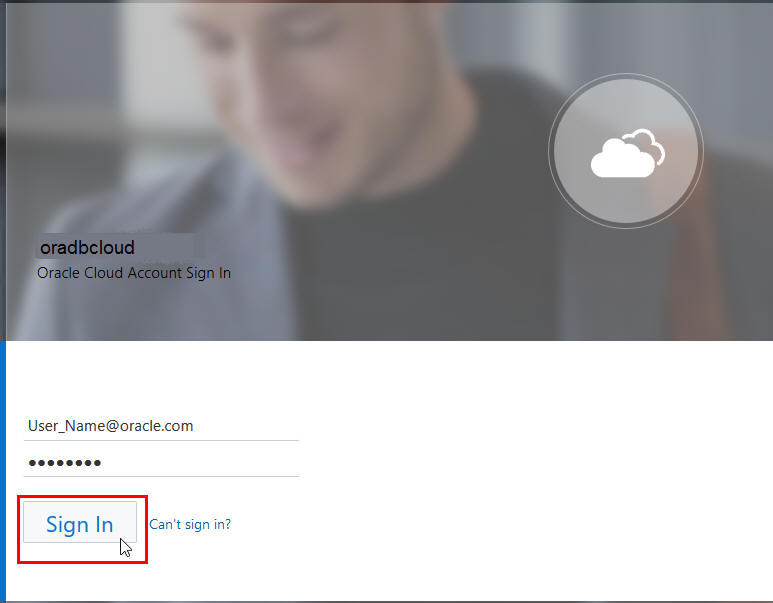

  3. Enter your User Name and Password and click Sign In to sign in to your Oracle Cloud Account.
    Cloud Account
    Description of the illustration cloud sign in
  4. If you see the Set Preferences page, enter your Language and Timezone and click OK.
  5. On the Cloud My Services page, click the navigation menu in the upper left to show top level navigation choices.
    Cloud Account
    Description of the illustration my services
  6. Click Services to show the available services. In the list of available services, select Autonomous Transaction Processing.
    Cloud Account
    Description of the illustration dashboard_services
  7. The console for Autonomous Transaction Processing displays. You can use the List Scope drop-down menu to select a compartment; in this example the Doc compartment is selected. Click here for documentation on creating compartments.
    This console shows no databases. If there were a long list of databases, you could filter the list by using the Filters drop-down menu to filter by the state of the databases (available, stopped, terminated, and so on.)
    Click Create Autonomous Transaction Processing Database to create a database instance.
    Alt Text
    Description of the illustration create_autonomous_transaction_processing_database

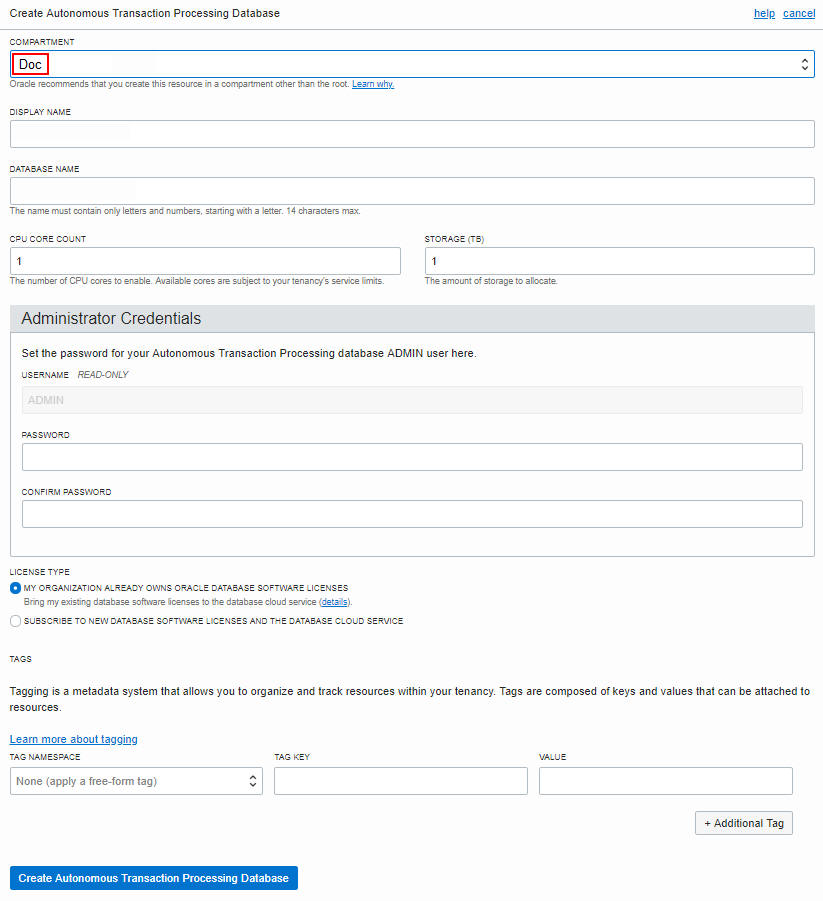

  8. The Create Autonomous Transaction Processing Database dialog appears. At the top of the dialog, select a compartment for the database from the drop-down list.
    Alt Text
    Description of the illustration create_click_here
  9. In the Create Autonomous Transaction Processing Database dialog, enter the following information:
    • Display Name - Enter a name for the database for display purposes.
    • Database Name - Use letters and numbers only, starting with a letter. Maximum length is 14 characters. (Underscores not initially supported.)
    • CPU Core Count - Number of CPUs for your service.
    • Storage (TB) - Select your storage capacity in terabytes. It is the actual space available to your service instance, including system-related space allocations.
    • Administrator Credentials - Password for ADMIN user of the service instance. The password must meet the following requirements:
      • The password must be between 12 and 30 characters long and must include at least one uppercase letter, one lowercase letter, and one numeric character.
      • The password cannot contain the username.
      • The password cannot contain the double quote (") character.
      • The password must be different from the last 4 passwords used.
      • The password must not be the same password that is set less than 24 hours ago.
    • License Type - Select whether you have existing licenses or if you want to subscribe to new database software licenses and the database cloud service.
    • Tags - (Optional) Tagging is a metadata system that allows you to organize and track resources within your tenancy. Tags are composed of keys and values which can be attached to resources.

      Click Create Autonomous Transaction Processing Database
      Alt Text
      Description of the illustration create_dialog_finish
  10. The Create Autonomous Transaction Processing Database dialog closes. On the console, the State field indicates that the database is Provisioning. When creation is completed, the State field changes from Provisioning to Available.
    Alt Text
    Description of the illustration provisioning_state


section 2Download the Credentials Zip File

Once you have created the database, download the credentials zip file for client access to that database. You will use this file in the next step, and in the next tutorial to connect SQL Developer to your Autonomous Transaction Processing database.

  1. In the console, in the details page of your new Autonomous Transaction Processing database, select DB Connection.
    select service console
    Description of the illustration open_service_console
  2. The Database Connection dialog opens for downloading client credentials. Click Download.
    username and password to open service console
    Description of the illustration database_connection_dialog

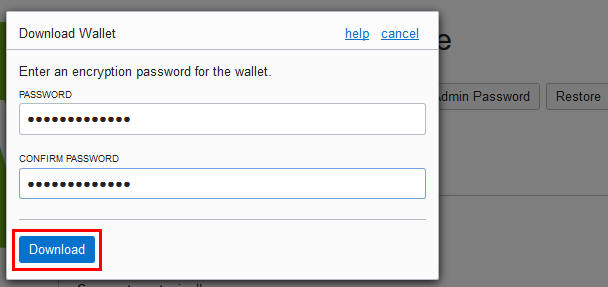

  3. In the Download Wallet dialog, enter an encryption password for the wallet, confirm the password, and then click Download.
    click download
    Description of the illustration download_wallet
  4. Click Save File, and then click OK.
  5. Store the zip file and make note of the password. You will use the zip file in the next step to define a SQL Developer connection to your Autonomous Transaction Processing database.

section 3Define a SQL Developer Connection

Define a SQL Developer connection to the database in your Autonomous Transaction Processing service.

  1. Open SQL Developer on your local computer. In the Connections panel, right-click Connections and select New Connection.
    Note:
    Depending on your version of SQL Developer, do not right-click Cloud Connection or Database Schema Service Connections. That menu selection is for connecting to a different Oracle cloud service, the Oracle Database Schema Service.
    select new connection
    Description of the illustration select_new_connection
  2. The New/Select Database Connection dialog appears. Enter the following information:
    • Connection Name - Enter the name for this cloud connection.
    • Username - Enter the database username. Use the default administrator database account (admin) that is provided as part of the service.
    • Password - Enter the admin user's password that you or your Autonomous Transaction Processing administrator specified when creating the service instance.
    • Connection Type - Select Cloud Wallet.
    • Configuration File - Click Browse, and select the Client Credentials zip file, downloaded from the Autonomous Transaction Processing service console by you, or given to you by your Autonomous Transaction Processing administrator.
    • Service - In the drop-down menu, service selections are prepended with database names. Select the tpurgent, tp, high, medium, or low menu item for your database. These service levels map to the TPURGENT, TP, HIGH, MEDIUM and LOW consumer groups, which provide different levels of priority for your session.
      Note: Earlier versions of SQL Developer may not support this feature.
    connection definition completed
    Description of the illustration new_select_database_connection_dialog
  3. Click Test.
    Status: Success displays at the left-most bottom of the New/Select Database Connection dialog.
  4. Click Connect.
    An entry for the new connection appears under Connections.

section 4Create a User in your Autonomous Transaction Processing Database

Once you have connected SQL Developer to your Autonomous Transaction Processing database, use a SQL Developer worksheet to define a create user statement to create the user atpc_user. In the next tutorial, you will create sales history tables in the atpc_user schema and load data into these tables from an object store.

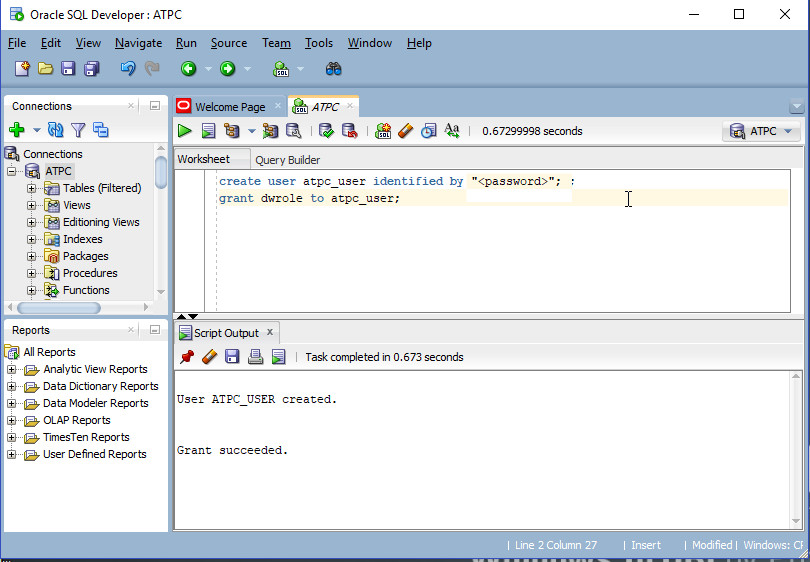

  1. Open a SQL Developer worksheet and run the following SQL statements to create the user atpc_user, swapping in a password with the guildelines provided in the following Note section.
    create user atpc_user identified by "<password>";
    grant dwrole to atpc_user;
    SQL Developer commands creating adwc_user
    Description of the illustration sql_developer_commands_create_atpc_user
    Note: Autonomous Transaction Processing requires strong passwords. The password you specify must meet the default password complexity rules. This database checks for the following requirements when you create or modify passwords:
    • The password must be between 12 and 30 characters long and must include at least one uppercase letter, one lowercase letter, and one numeric character.
    • The password cannot contain the username.
    • The password cannot be one of the last four passwords used for the same username.
    • The password cannot contain the double quote (") character

    Note    : Autonomous Transaction Processing databases come with a pre-defined database role named DWROLE.
    This role provides the common privileges for a database user: CREATE ANALYTIC VIEW, CREATE ATTRIBUTE DIMENSION, ALTER SESSION, CREATE HIERARCHY, CREATE JOB, CREATE MINING MODEL, CREATE PROCEDURE, CREATE SEQUENCE, CREATE SESSION, CREATE SYNONYM, CREATE TABLE, CREATE TRIGGER, CREATE TYPE, CREATE VIEW, READ,WRITE ON directory DATA_PUMP_DIR, EXECUTE privilege on the PL/SQL package DBMS_CLOUD

  2. In the next tutorial, "Connecting SQL Developer to Autonomous Transaction Processing", you will connect SQL Developer to your Autonomous Transaction Processing database as user atpc_user, and define SH tables(sales history tables from an Oracle sample schema) for that user. Later, you will load data into those tables from an Object Store.
